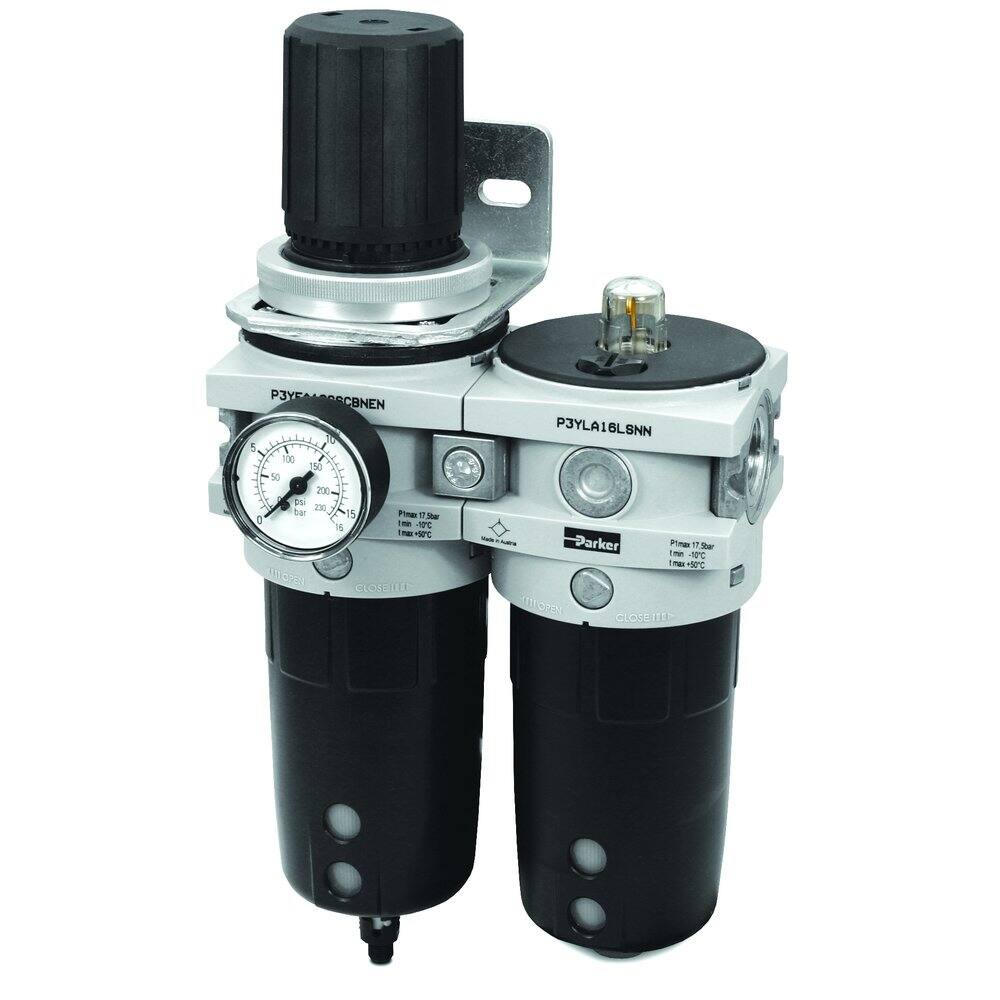

Parker P3Y Series 1"Bspp Filter / Regulator + Lubricator, Auto Drain, Metal Bowl, 30 Micron c/w 0-12Bar Round Gauge & Wall Mounting Brackets
Overview
The Parker P3Y Large Series is the high-flow 90 mm body width air preparation range for mainline and large-actuator installations. Available in G3/4 and G1 port sizes (with G1-1/2 via end blocks), the range offers 12 bar standard operation (16 bar as a non-relieving regulator option), Filter / Regulator / Lubricator combinations, individual filters down to 0.01 micron (coalescer and adsorber), regulators with optional lockable settings and gauges, and oil-mist lubricators.
Markets:
- Industrial automation
- Manufacturing
- Process control
- Large-actuator pneumatic systems
Applications:
- Mainline air conditioning for high-flow valve banks and cylinders
- Coalescer / adsorber filtration for clean instrument air
- Lockable pressure regulation for safety-critical lines
Features/Benefits:
- 90 mm body — highest flow in the Global Air Preparation family
- Polyamide bowl with aluminium guard
- Standard 12 bar operation (16 bar regulator option)
- 5 / 1 / 0.01 micron filtration options
- Auto / Semi-auto / Manual drain
- Lockable regulator option
Specifications
| Port / thread | 1"Bspp |
|---|---|
| Material | Metal |
| Pressure | 12bar |
| Temperature Range | -10°C to +60°C |
| Working media | compressed air with oil mist |
| Application | factory-assembled high-flow FRL sets |
| Catalogue reference | PNDE3800, p.28 |
