Parker P3Y Series Neck Mounting Bracket Kit
Overview
The Parker P3Y Large Series is the high-flow 90 mm body width air preparation range for mainline and large-actuator installations. Available in G3/4 and G1 port sizes (with G1-1/2 via end blocks), the range offers 12 bar standard operation (16 bar as a non-relieving regulator option), Filter / Regulator / Lubricator combinations, individual filters down to 0.01 micron (coalescer and adsorber), regulators with optional lockable settings and gauges, and oil-mist lubricators.
Markets:
- Industrial automation
- Manufacturing
- Process control
- Large-actuator pneumatic systems
Applications:
- Mainline air conditioning for high-flow valve banks and cylinders
- Coalescer / adsorber filtration for clean instrument air
- Lockable pressure regulation for safety-critical lines
Features/Benefits:
- 90 mm body — highest flow in the Global Air Preparation family
- Polyamide bowl with aluminium guard
- Standard 12 bar operation (16 bar regulator option)
- 5 / 1 / 0.01 micron filtration options
- Auto / Semi-auto / Manual drain
- Lockable regulator option
Specifications
| Maximum Operating Pressure | 16–17.5 bar |
|---|---|
| Size / port thread | 3/4"–1-1/2" BSP |
| Temperature Range | -10°C to +60°C |
| Working media | Compressed air |
| Application | Spare or accessory for P3Y units. Ordered as its own line. |
| Pressure (detail) | 17.5 bar max, except the P3YTA soft start/dump, which is 16 bar — set by its 30 mm CNOMO coil. Source: PDE2676TCUK, pp.91, 93, 94 |

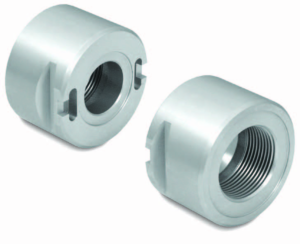

| Size (detail) | 3/4" and 1" BSP; 1-1/2" via the P3YKA port block kit, which is a separate line item |
| Temperature (detail) | -10°C to +60°C — modular ball valve P3YVA is limited by its nitrile NBR seals; port blocks and manifolds are rated as the host unit |
| Catalogue reference | Parker Pneumatic Global Air Preparation System PDE2676TCUK, p.82, 86, 95 |
| Description | Neck mounting bracket kit |
