Parker Hannifin Genuine

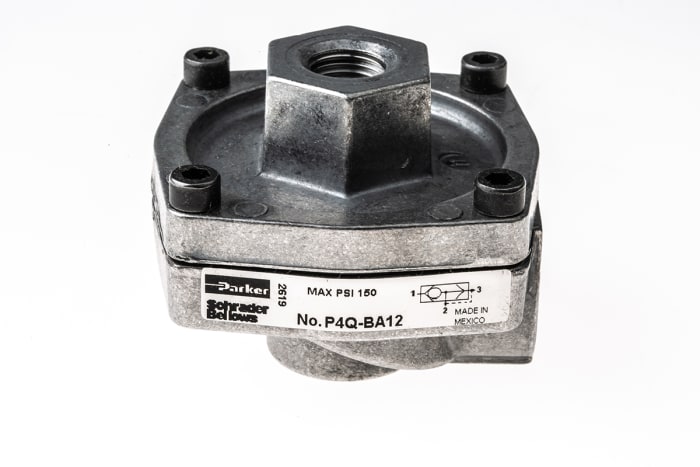

Parker P4Q Series Standard Quick Exhaust Valve 3/4"Bspp
R2002,30Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
In stock · Ships from Johannesburg
Maximum Operating Pressure
2–10 bar
Temperature Range
-20°C to +120°C
Media
compressed air
Overview
Parker P4Q Series Standard Quick Exhaust Valve 3/4"Bspp
Specifications
| Maximum Operating Pressure | 2–10 bar |
|---|---|
| Temperature Range | -20°C to +120°C |
| Media | compressed air |
| Application | quick exhaust valves venting a cylinder port locally to speed the return stroke |
| Pressure (detail) | 2 to 10 bar (shape 7910 from 0.7 to 10 bar). Range STAMP — Parker Legris current catalogue, p.85 |
| Size (detail) | sizes per shape — the range specification block prints no single size |
| Temperature (detail) | -20°C to +120°C |
| Catalogue reference | Parker Pneumatic Airline-Accessories PDE2566TCUK, p.4 |
| Port / connection | G3/4 |
| Function | Quick exhaust valve |
| Description | Quick exhaust valve, standard version, aluminium body, nitrile diaphragm, Cv 7.3 |
