Parker Hannifin Genuine

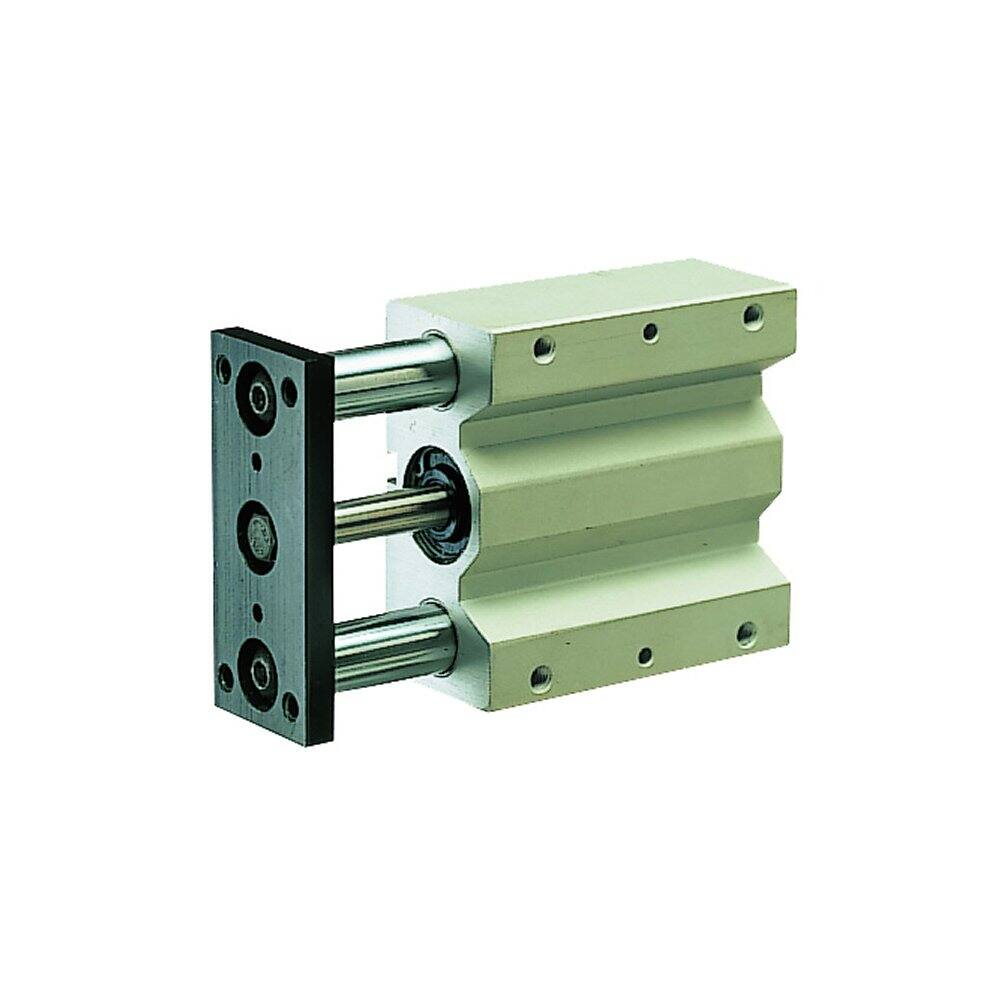

Parker P5T Series 20mm Bore x 100mm Stroke Short Stroke Thrusters Cylinder STD Temp Composite Bearing Ports on Top
R58193,27Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 35 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar max
Size / port thread
10–200 mm
Stroke
100 mm
Overview
Parker P5T Series 20mm Bore x 100mm Stroke Short Stroke Thrusters Cylinder STD Temp Composite Bearing Ports on Top
Specifications
| Bore | 20 mm |
|---|---|
| Stroke | 100 mm |
| Maximum Operating Pressure | 10 bar max |
| Size / port thread | 10–200 mm |
| Temperature Range | -18°C to +74°C |
| Working media | compressed air |
| Application | guided actuation where side load or anti-rotation matters — tool plates, transfer, clamping |
| Pressure (detail) | 10 bar max (1 MPa / 145 psi). Source: Parker AU03-0900P-3/NA |
| Size (detail) | bore 16, 20, 25, 32, 40, 50, 63, 80 and 100 mm; stroke 10 to 200 mm, availability varying by bore |
| Temperature (detail) | -18°C to +74°C with nitrile seals (standard); fluorocarbon seals available for higher temperature |
| Catalogue reference | PDE2557TCUK, p.1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
