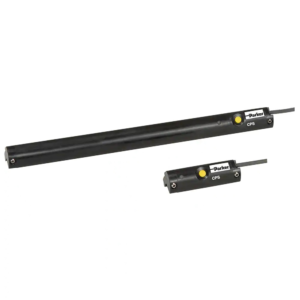

Parker P8S Analogue Continuous Position Sensor M8 4-20ma 256mm
Overview
Parker P8S sensors detect piston position on magnetic-piston cylinders (Parker P1A, P1P, P1F and others). The range includes electric reed sensors (NO / NC variants, 2-wire / 3-wire), electronic sensors, and analogue continuous-position sensors with M8 / M12 connectors. Mounting brackets are also available to retrofit sensors to tie-rod and ISO cylinders.
Applications:
- Cylinder end-of-stroke detection
- Continuous piston position feedback
- Sensor retrofit to existing cylinders
Features/Benefits:
- Reed, electronic and analogue (4–20 mA) options
- 2-wire / 3-wire variants
- Wide voltage range (e.g. 5–230 V AC/DC for reed)
- LED indicators on most variants
- Brackets for tie-rod cylinder retrofit
Specifications
| Connection Type | M8 Analog M12 IO-Link (knurled nuts) |
|---|---|
| Output Type | Analog |
| Measuring Range (mm) | 0-256 |
| Output Voltage | 0 to 10 V |
| Cable Type | PUR (Polyurethane) Cable length 0.3m |
| Ingress Protection Rating | IP67 (according to EN 60529) |
| Resolution | 0.03 % Full Stroke. Full Scale Range (max >=0.05 mm) |
| Specifications Met | On Request, CE, RoHs, C UL US, IO-Link, CCC (not applicable) |
| Cylinder Type | Profile with T-slot |
| Sensing Range | 32 to 256 mm depending on Type. |
| Installation | Drop-in fixed by allen key 2.5 mm |
| Input Voltage | 15 to 30 VDC |
| Vibration Resistance | 30 g 11 ms / 10 … 55 Hz, 1 mm |
| Output Current Rating | 4 to 20 mA |
| LED Color | Yellow (Analog) |
| Signal Output | Analog |
| Repeatability | 0.06 % Full Scale Range (>= 0.1 mm) |
| Overall Length | 0 to 256 mm |
| Housing Material | Plastic Polyamid PA12 |
| Screw Material | Stainless Steel |
| Maximum Ambient Temperature | 70 °C |
| Minimum Ambient Temperature | -20 °C |
| Linearity | 0.3 mm |
| Catalogue reference | Parker Pneumatic P8S Sensors PDE2815TCUK, p.12 |
