Parker Hannifin Genuine

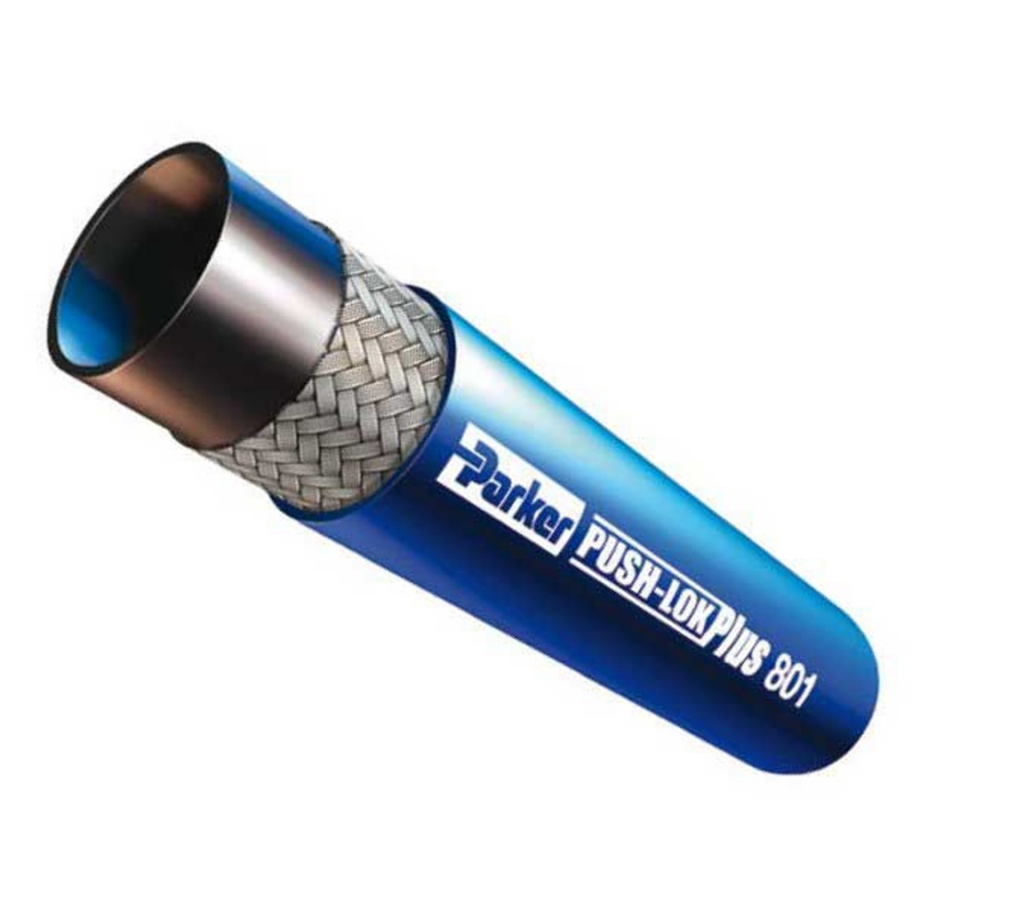

Parker Push-Lok Plus Multipurpose Hose ID 3/4" 19.1mm - Blue PER METER
R294,69Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
In stock · Ships from Johannesburg
Maximum Operating Pressure
14–24 bar
Size / port thread
-4 to -16
Temperature Range
-40°C to +125°C
Overview
Parker Push-Lok Plus Multipurpose Hose ID 3/4" 19.1mm - Blue PER METER
Specifications
| Maximum Operating Pressure | 14–24 bar |
|---|---|
| Size / port thread | -4 to -16 |
| Temperature Range | -40°C to +125°C |
| Working media | compressed air, petroleum base hydraulic fluid, lubricating oils and antifreeze solutions |
| Application | general purpose push-on hose; one fibre braid, MSHA-accepted synthetic rubber cover. Assembles with 82 Series field-attachable fittings — no crimping |
| Pressure (detail) | 14 to 24 bar, falling with bore size. Source: Parker Catalog 4400, p.33 (fittings p.230) |
| Size (detail) | 6.3 to 25 mm bore (-4 to -16) |
| Temperature (detail) | -40°C to +125°C |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.114, 115 |
Documents
Catalogues Literature
Compliance · Certifications · Safety
Parker Safety Guide for Selecting Hose, Tubing, Fittings and Accessories--(English)
REACH_Declaration--(English)
PFAS_Statement--(English)
ROHS_III_Declaration--(English)
Contact Support Information
Communities Blogs Industry Links
Catalogues & Literature
Parker Push-Lok Hoses and Fittings BUL_4480_B176_UK--(English)
Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English)
Parker Hydraulic Hoses, Fittings and Equipment Catalogue for Distribution CAT_4402_UK--(English)
FCG HPD Thermal Management Solutions Video
Demos & Tutorials
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →
