Parker Hannifin Genuine

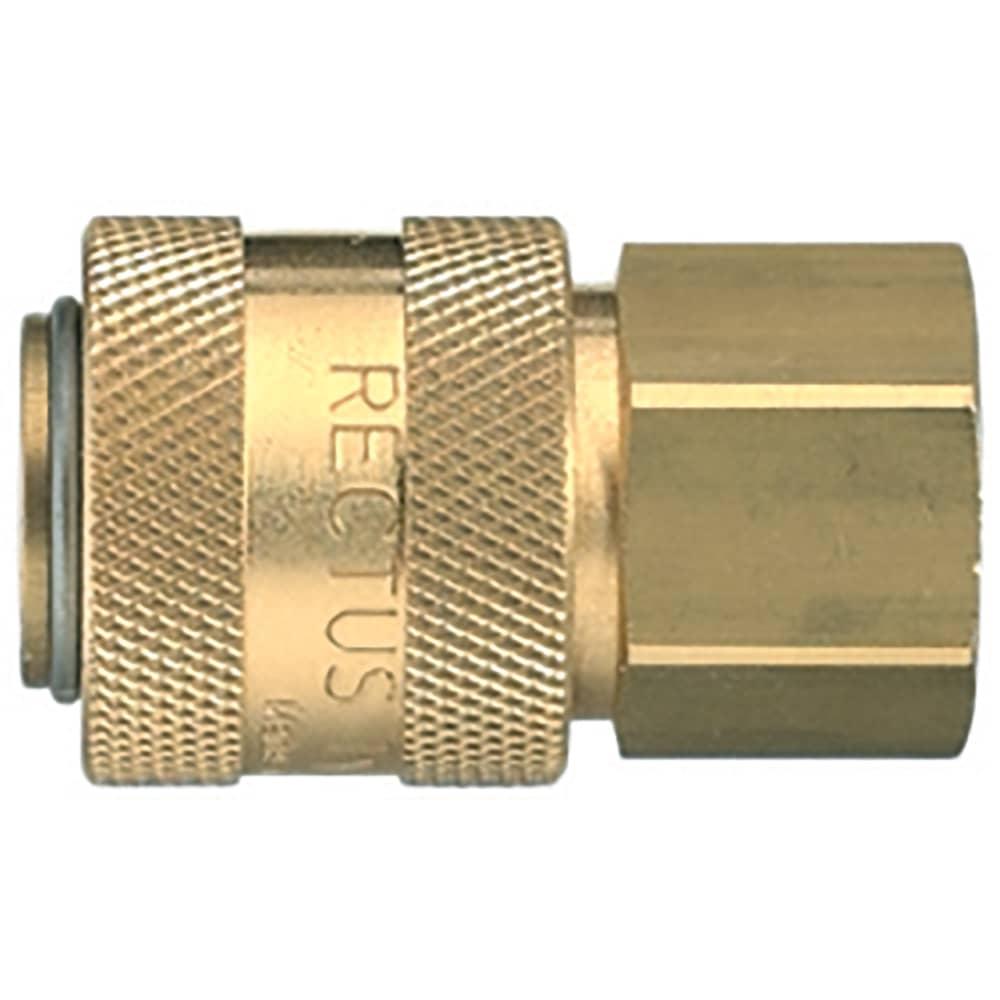

Parker Rectus 13 Series Brass G 1/2 Female BSPP Coupler Single Shut-Off
R408,08
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Made to order · Confirmed on quote
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
35 bar
Hex Size
24 mm
Body Material
Brass
Overview
Parker Rectus 13 Series Brass G 1/2 Female BSPP Coupler Single Shut-Off
Specifications
| Body Material | Brass |
|---|---|
| Connection Type | Female BSPP |
| Connection Size | G 1/2 |
| Coupling Half | Coupler |
| Function | Single Shut-Off |
| Country of origin | DE |
| Weight | 0.1021 kg |
| Standard pack | 10 |
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Function | Single Shut-Off |
|---|---|
| Coupling Half | Coupler |
| Connection Size | G 1/2 |
| Connection Type | Female BSPP |
| Maximum Operating Pressure | 35 bar |
| Temperature Range | -20°C to +100°C |
| Body Material | Brass |
| Seal Material | NBR |
| Sleeve Material | Brass |
| Flow Rate | 0 L/min, 1150 L/min (air) |
| Diameter | 7.5 mm (nominal) |
| Hex Size | 24 mm |
| Length | 48 mm |
| Outside Diameter | 27 mm |
| Weight | 0.1021 kg |
| Valve Type | Standard Valve |
| Interchange Type | Japanese profile |
| Compatible Fitting | Series 13 Plug |
| For Fluid Type | Air & Neutral Gases (Industrial compressed, lubricated air, inert gases) |
| Product Series | Series 13 |
| Product Type | Pneumatic Quick Couplings |
| Plating Type | Without Surface Treatment |
| Region of Origin | Germany |
| Quantity per Box | 10.0 |
| Application | Pneumatic Power Tools, Assembly Lines, Air compressors, Fluid Transfer |
Documents
Catalogues & Literature
Dust Caps
Parker Legris Rectus - General Catalogue
Torque recommendations
Instructions for use - Standard-Couplings
Catalogue Page Parker Rectus Series 13
Datasheet Series 13 Single-Shut-Off Version made of Brass/Steel
Leakage rates for low-pressure couplings
Compliance · Certifications · Safety
Safety instructions - Quick Connect Couplings
Machinery Directive 2006/42/EC
REACH-Declaration
RoHS Declaration of conformity
Customer information about test reports and inspection certificates
Instructions for use for explosive areas (ATEX)
Certificate of conformity - 2014 68 EU_connectic
