Parker Hannifin Genuine

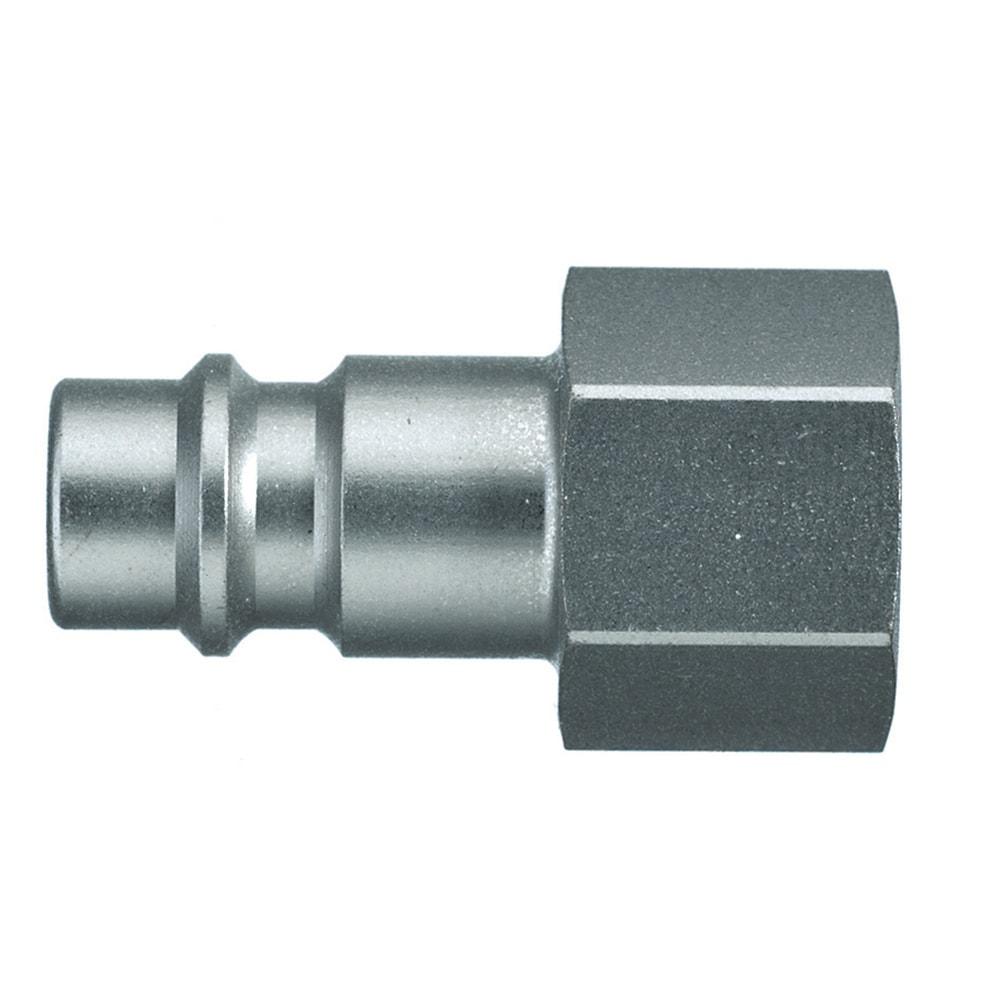

Parker Rectus 25 Series Steel G 1/4 Female BSPP Plug Straight-Through
R93,23
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Made to order · Confirmed on quote
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
35 bar
Hex Size
17 mm
Body Material
Steel
Overview
Parker Rectus 25 Series Steel G 1/4 Female BSPP Plug Straight-Through
Specifications
| Connection Size | G 1/4 |
|---|---|
| Coupling Half | Plug |
| Body Material | Steel |
| Connection Type | Female BSPP |
| Function | Straight-Through |
| Country of origin | DE |
| Weight | 0.0229 kg |
| Standard pack | 10 |
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Function | Straight-Through |
|---|---|
| Coupling Half | Plug |
| Connection Size | G 1/4 |
| Connection Type | Female BSPP |
| Maximum Operating Pressure | 35 bar |
| Temperature Range | -40°C to +240°C |
| Body Material | Steel |
| Seal Material | Without Seal |
| Sleeve Material | Without Sleeve |
| Flow Rate | 28 L/min (water), 1800 L/min (air) |
| Diameter | 7.8 mm (nominal) |
| Hex Size | 17 mm |
| Length | 38.5 mm |
| Outside Diameter | n/a mm |
| Weight | 0.0229 kg |
| Valve Type | Without Valve |
| Interchange Type | European Profile |
| Compatible Fitting | Series 1600 Coupler, Series 25 Coupler, Series 1625 Coupler |
| For Fluid Type | Water (Industrial, drinking, treated water) |
| Product Series | Series 25 |
| Product Type | Pneumatic Quick Couplings |
| Plating Type | Zinc-Plated |
| Region of Origin | Germany |
| Quantity per Box | 10.0 |
| Application | Air & Gas Compressor, Industrial Machinery, Electronics, Pharma, Mobile & Defence, Trucks & Trailers |
