Parker Hannifin Genuine

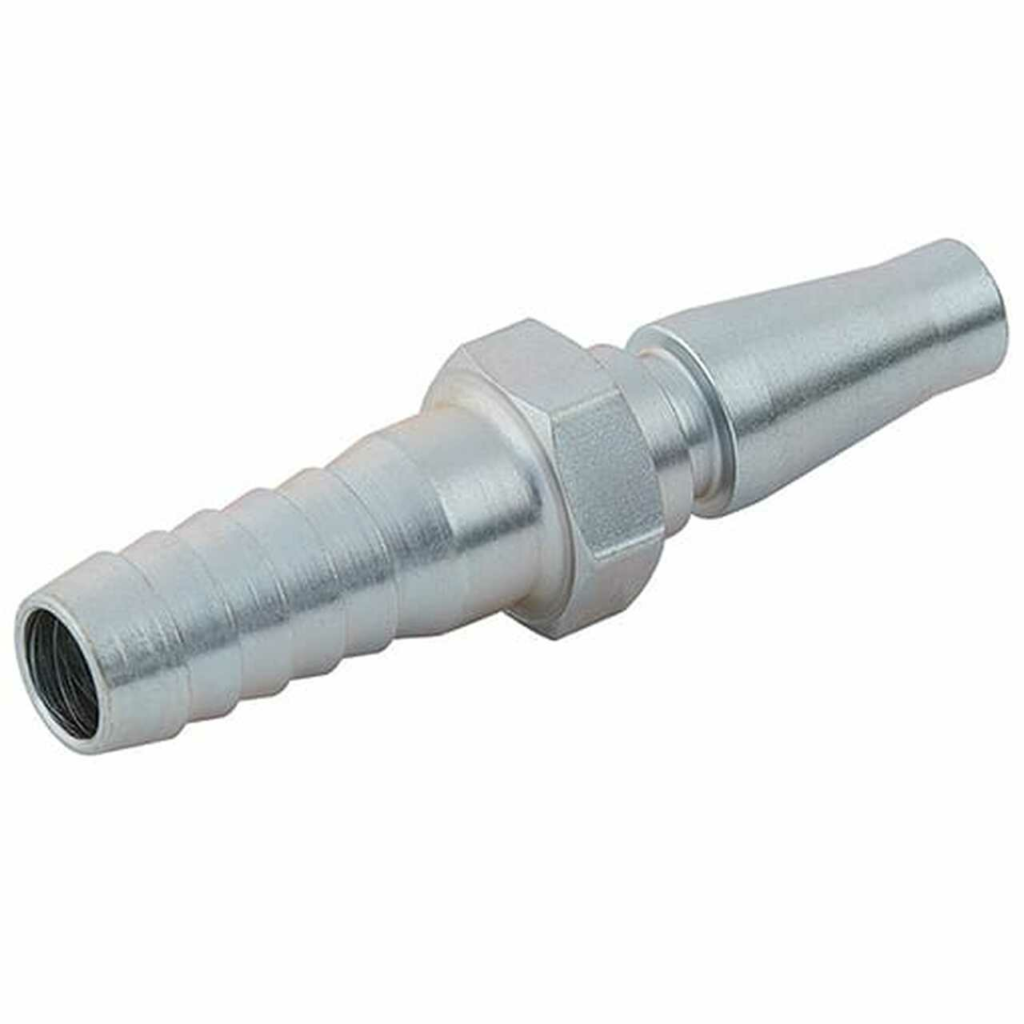

Parker Schrader Twistlok Standard Adaptor 6mm Hose tail
Price on RequestLogin for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
In stock · Ships from Johannesburg
Maximum Operating Pressure
35 bar
Size / port thread
nominal diameter 5 / 7.8 mm
Temperature Range
-20°C to +100°C
Overview
8787-11 - Parker Schrader Twistlok Standard Adaptor 6mm Hose tail
The Schrader Bellows Original Twistlok Coupler was designed for single hand connection and disconnection. A twist of the cap will release the adaptor and the airline is automatically re-sealed. When coupled, the check unit allows the adaptor to swivel, preventing kinking of the hose.
Markets:
- Machinery Construction
- Automotive
- Life Science
- Factory Automation
- Industrial
- Machine Tooling
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
- Blowguns
Specifications
| Maximum Operating Pressure | 35 bar |
|---|---|
| Size / port thread | nominal diameter 5 / 7.8 mm |
| Temperature Range | -20°C to +100°C |
| Working media | air, neutral gases and industrial water |
| Application | standard industrial quick-release couplers |
| Pressure (detail) | up to 35 bar. Range STAMP — Parker Legris current catalogue, p.183 (industrial version) |
| Size (detail) | nominal diameter 5 / 7.8 mm |
| Temperature (detail) | -20°C to +100°C |
| Catalogue reference | Schrader Twistlok, p.1, 2, 3 |
Documents
Catalogues Literature
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →
