Parker Hannifin Genuine

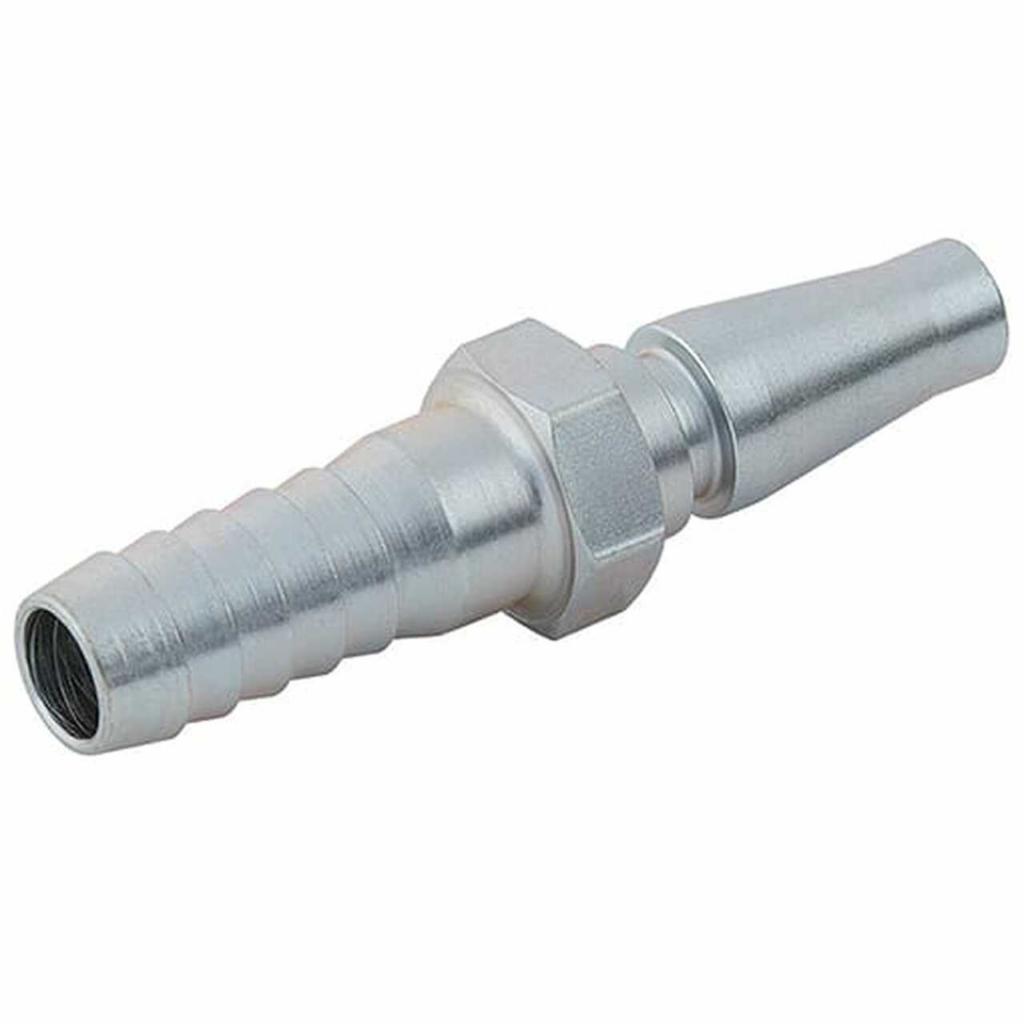

Parker Schrader Twistlok Standard Adaptor 8mm Hose tail (Replacement for 9750-11)
R208,57Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
In stock · Ships from Johannesburg
Maximum Operating Pressure
35 bar
Hex Size
n/a
Body Material
Steel
Overview
Parker Schrader Twistlok Standard Adaptor 8mm Hose tail (Replacement for 9750-11)
Specifications
| Function | Straight-Through |
|---|---|
| Coupling Half | Plug |
| Connection Size | 8 mm |
| Connection Type | Hose Barb |
| Maximum Operating Pressure | 35 bar |
| Temperature Range | -20°C to +100°C |
| Body Material | Steel |
| Seal Material | Without Seal |
| Sleeve Material | Without Sleeve |
| Flow Rate | 11 L/min (water), 890 L/min (air) |
| Diameter | 5 mm (nominal) |
| Hex Size | n/a |
| Length | 52 mm |
| Outside Diameter | 12 mm |
| Weight | 0.016 kg |
| Valve Type | Without Valve |
| Interchange Type | British Profile |
| Compatible Fitting | Series 17 Coupler |
| For Fluid Type | Water (Industrial, drinking, treated water), Chemicals (Paints, solvents, lubricants) |
| Product Series | Series 17 |
| Product Type | Pneumatic Quick Couplings |
| Plating Type | Nickel-Plated |
| Region of Origin | Germany |
| Quantity per Box | 10 |
| Application | Air compressors, Assembly Lines, Pneumatic Power Tools |
| Catalogue reference | Parker Legris Rectus Distribution Catalogue (Europe), p.215 |
