Parker V4 Series Hose Nipple - Female BSPP Swivel 60° Cone (DKR) - 2" BSP - Hose -32 - Steel
Overview
Parker ParLock® skive hose fittings are two-piece crimp fittings for Parker's high-pressure multispiral hoses. The hose cover (and, for some series, the inner tube) is skived back before assembly so the ferrule grips the wire reinforcement directly, giving maximum retention for heavy-duty, high-impulse applications.

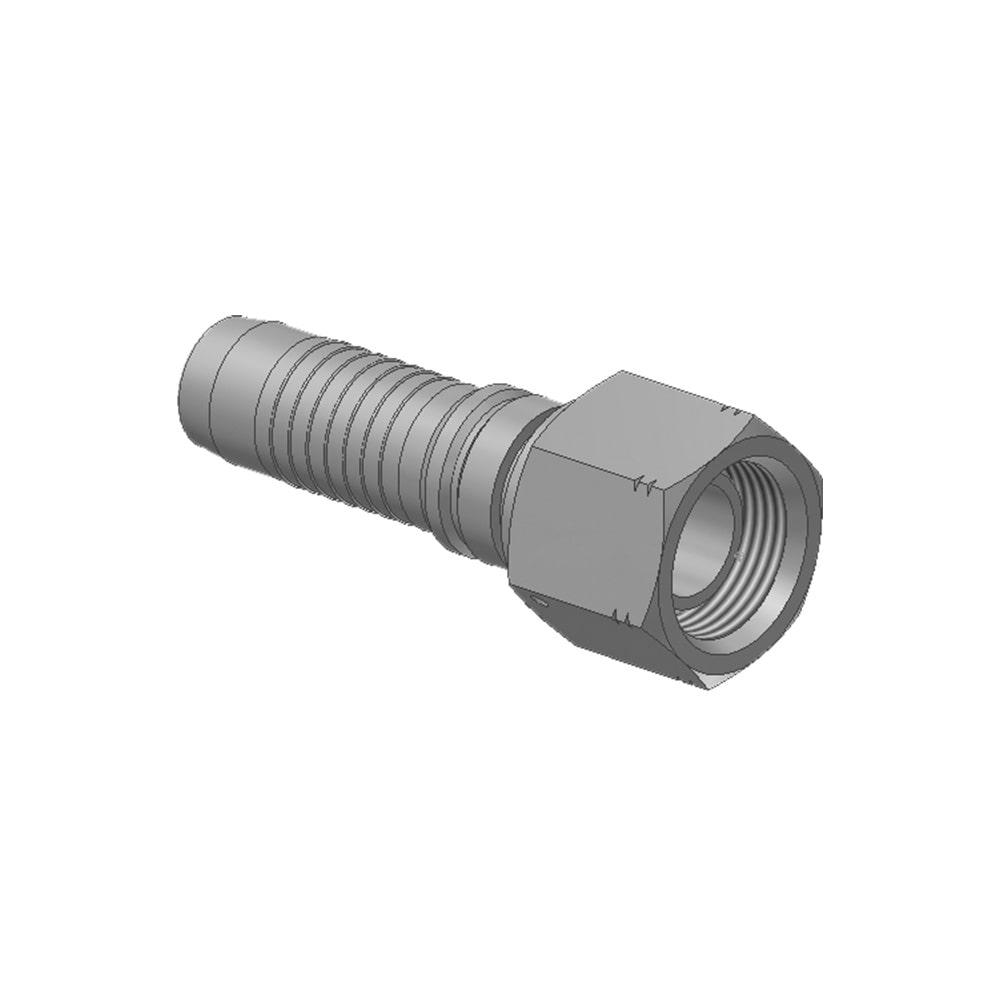

The K92V4-32-32 is a Parker V4 Series Hose Nipple with a female BSPP swivel 60° cone (DKR) end (2" BSP) for size -32 hose, in steel. Supplied as the nipple only, without the crimp shell.
Dimensions, pressure ratings and ordering details are on page 437 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Hose Inside Diameter | 50.8 mm |
|---|---|
| Nominal Inside Diameter | DN 51 |
| Port Size | 2" |
| Connection Size | 2" Thread |
| Shape | Straight |
| Body Material | Steel |
| Specifications Met | BS 5200-A |
| Connection Type | Female |
| Quantity per Box | 2 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.437 |
