Parker V5 Series Crimp Shell - Hose -6 - Steel
Overview
Parker ParLock® skive hose fittings are two-piece crimp fittings for Parker's high-pressure multispiral hoses. The hose cover (and, for some series, the inner tube) is skived back before assembly so the ferrule grips the wire reinforcement directly, giving maximum retention for heavy-duty, high-impulse applications.

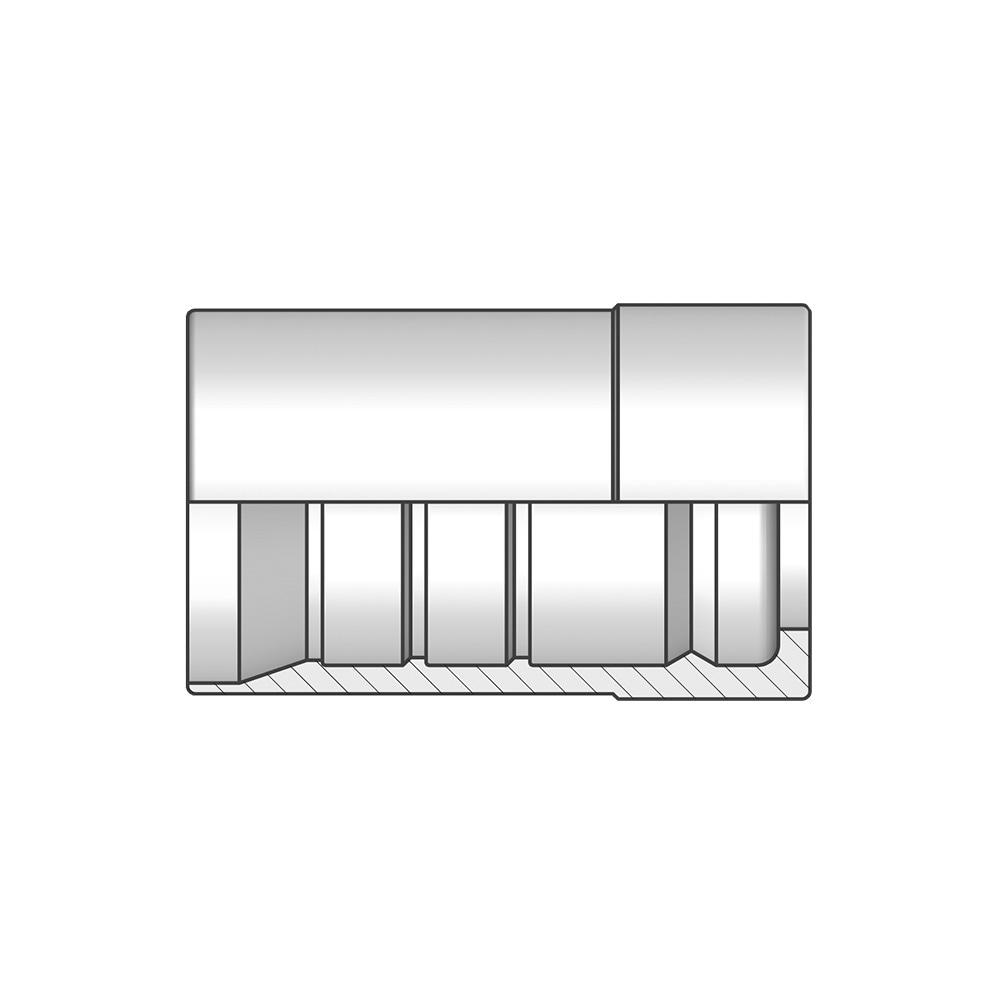

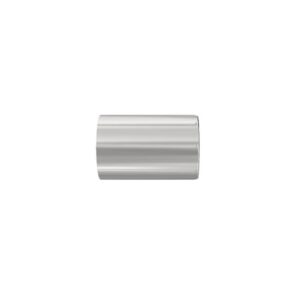

The 100V5-6 is a Parker V5 Series crimp shell (ferrule) for size -6 hose, in steel. It is the outer sleeve crimped over the hose onto the V5 Series fitting stem.
Dimensions, pressure ratings and ordering details are on page 458 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Hose Inside Diameter | 9.5 mm |
|---|---|
| Nominal Inside Diameter | DN 10 |
| Shape | Straight |
| Body Material | Steel |
| Connection Type | Shell |
| Quantity per Box | 150 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.458 |
