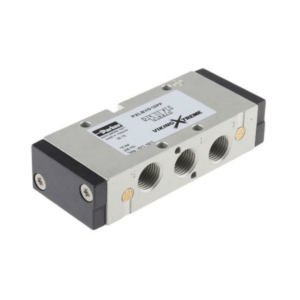

Parker Viking Extreme Series 5/2 1/8"Bspp Double Air Pilot / Directional Control Valve EXTREME Temp
R1697,50Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10–16 bar
Size / port thread
2–8
Temperature Range
-40 to 70 °C
Overview
Parker Viking Extreme Series 5/2 1/8"Bspp Double Air Pilot / Directional Control Valve EXTREME Temp
Specifications
| Maximum Operating Pressure | 10–16 bar |
|---|---|
| Size / port thread | 2–8 |
| Temperature Range | -40 to 70 °C |
| Working media | dry filtered compressed air |
| Application | high-performance inline (body ported) pneumatic directional control valves |
| Pressure (detail) | 10 to 16 bar maximum operating; 1.5 to 3.5 bar minimum depending on function. Source: Parker Viking Xtreme, PDE2569TCUK |
| Size (detail) | port thread G1/8, G1/4, G3/8 and G1/2; body series P2LAX, P2LBX, P2LCX and P2LDX |
| Temperature (detail) | -40°C to +70°C across the range — the solenoid operator and coil narrow it, so check the order code |
| Catalogue reference | Parker Pneumatic Viking Xtreme Catalogue PDE2569TCUK, p.10 |
| Function | 5/2 |
