Parker Hannifin Genuine
Parker Viking Extreme Series 5/2 1/8"Bspp Lever Operated / Spring Return Directional Control Valve 90° EXTREME Temp
R1891,14Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Temperature Range
-40°C to +70°C
Working media
compressed air, vacuum
Port / connection
G1/8
Overview
Parker Viking Extreme Series 5/2 1/8"Bspp Lever Operated / Spring Return Directional Control Valve 90° EXTREME Temp
Specifications
| Port / connection | G1/8 |
|---|---|
| Pressure | max 16 (vacuum rated) bar |
| Working media | compressed air, vacuum |
| Application | manual lever valve |
| Description | 5/2, 2-position lever valve, spring return lever, 90° to ports, Cv 0.6 |
| Temperature Range | -40°C to +70°C |
| Catalogue reference | Parker Pneumatic Viking Xtreme Catalogue PDE2569TCUK, p.12 |
Documents
Catalogues Literature
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →
Parker Viking Extreme Series 5/2 1/4"Bspp Lever Operated / Lever Return Directional Control Valve 90° EXTREME Temp

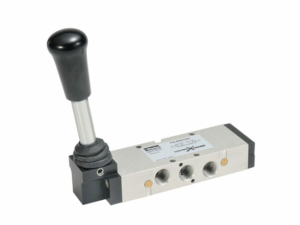

Parker Viking Extreme Series 5/3 1/2"Bspp Lever Operated / Self Centring Closed Centre Directional Control Valve 90° EXTREME Temp
