Parker Viking Lite Series 5/3 1/8"Bspp Double Solenoid / Pressure Centre Directional Control Valve STD Temp (22mm) - NO COIL
Overview
The Parker Viking Lite valve range is robust, versatile, and combines high performance with compact installation dimensions. Available in G1/8, G1/4 and G3/8 port sizes, it provides large flow capacity and short change-over times for maximum productivity, with a low change-over pressure for fast, efficient response. Designed to operate at pressures up to 10 bar in temperatures from -10°C to +50°C, the range is built around a robust anodised-aluminium valve body with die-cast end covers and a polished bore for maximum flow capacity and long life. A wear-compensating dynamic bi-directional spool seal expands radially under pressure to maintain sealing contact with the valve bore, reducing friction and giving lower pilot pressures, fast response and reduced wear. Valves do not require lubrication in operation but can be installed in lubricated systems. The range is rust- and corrosion-resistant, with smooth dirt-free dimensions, and complies with the EU Machinery Directive standards EN292-2 and EN983 for component reliability. Flexible installation options include manifold bars (2 to 14 valves) for common supply/exhaust ducts, and pressure bars for common primary air supply with optional restrictor-silencers for individual cylinder/air-motor speed adjustment.
Markets:
- Industrial automation
- Packaging
- Manufacturing
- Process line actuation
Applications:
- Pneumatic cylinder / actuator control
- Standard machine sequencing
- Process line valve piloting
Features/Benefits:
- 10 bar working pressure, -10°C to +50°C
- Wear-compensating dynamic bi-directional spool seals
- Anodised-aluminium body and end covers; polished bore
- Operates lubricated or non-lubricated
- Rust- and corrosion-resistant smooth design
- ISO 6358 flow rated; ISO 8573-1 [3.4.3] air quality
- Compact installation, integral mounting

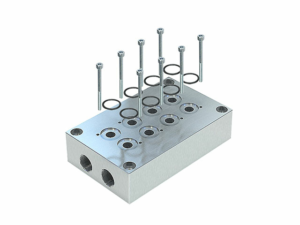

- Manifold-bar / pressure-bar installation options
- 22 mm DIN Form B solenoid pilot with FKM seats, IP65 with cable plug
- Compliant with EN292-2 and EN983 (EU Machinery Directive)
Specifications
| Series | Viking Lite (P2LAZ) |
|---|---|
| Valve family | P2L Viking inline valve |
| Size / port thread | G1/8 (1/8" BSPP) |
| Valve function | 5/3 valve — Pressurised Center |
| Actuation / return | Double solenoid |
| Solenoid pilot / connector | 22mm DIN 43650 Form B — operator only (coil ordered separately) |
| Maximum operating pressure | 10 bar |
| Operating temperature | -10 °C to +50 °C |
| Nominal flow Qn | 10.1 l/s |
| Maximum flow Qmax | 15.6 l/s |
| Flow coefficient Cv | 0.6 |
| ISO 6358 — c | 2.2 Nl/(s·bar) |
| ISO 6358 — b | 0.30 |
| Air quality | ISO 8573-1 class 3.4.3 (5 µm filter, +3°C dew point, 1.0 mg/m³ oil) |
| Valve body | Anodised aluminium (polished bore) |
| End covers | Die-cast / Anodised aluminium |
| Spool | Aluminium |
| Spool seals | Nitrile rubber (wear-compensating dynamic bi-directional) |
| Piston | Acetal plastic / anodised aluminium |
| End-cover sealings | Nitrile rubber |
| End-cover screws | Zinc plated steel |
| Springs | Stainless steel |
| Mounting screws for solenoid | Stainless steel |
| Pilot adaptor | Acetal plastic |
| Lubrication | Operates lubricated or non-lubricated |
| Working media | Compressed air or inert gas, ISO 8573-1 class 3.4.3 |
| Standards | EN292-2, EN983 (EU Machinery Directive) |
| Catalog code | P2LAZ711EENDCN |
