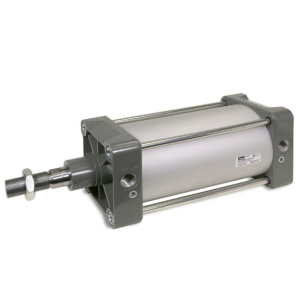

P1F-T ISO 15552 Tie-Rod Small Bore Ø32 to 125mm

The P1F-T Series in bore sizes Ø32 to 125mm is an ISO 15552 double-acting pneumatic cylinder with a tie-rod design suitable for standard, low & high temperatures. With various piston rod materials and wiper/rod sealing options for a wide range of applications. Strokes up to 2500 mm.

Size: bore 32, 40, 50, 63, 80, 100 and 125 mm; standard strokes to ISO 4393 (except 40 mm), non-standard to 2500 mm on request. - Temperature: set by the seal — -20°C to +80°C standard (M); -10°C to +150°C high temperature (F); -40°C to +80°C low temperature (L); -30°C to +80°C metallic scraper (Q); ATEX design A -20°C to +60°C, set by the certificate rather than the seal. Option F has no magnetic piston, so position sensors cannot be fitted. - Application: general purpose ISO 15552 actuation; smooth or tie-rod body. - Media: dry filtered compressed air. - Pressure: 1 to 10 bar. Source: Parker PDE3570TCEN
