Parker Hannifin Genuine

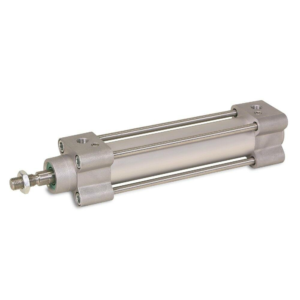

Parker P1F Series ISO 15552 125mm Bore x 600mm Stroke Tie-Rod Cylinder STD Temp c/w Magnet
R31962,71Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar
Stroke
600 mm
Bore
125 mm
Overview
Parker P1F Series ISO 15552 125mm Bore x 600mm Stroke Tie-Rod Cylinder STD Temp c/w Magnet
Specifications
| Standard | ISO 15552 (VDMA 24562) |
|---|---|
| Cylinder design | Tie-rod |
| Bore | 125 mm |
| Stroke | 600 mm |
| Action | Double acting, adjustable cushioning both ends |
| Temperature Range | -20°C to +80°C (standard) |
| Piston rod | Stainless steel, male thread |
| Piston | Aluminium, with magnet |
| Maximum Operating Pressure | 10 bar |
| Working media | Filtered compressed air, lubricated or non-lubricated |
| Theoretical force at 6 bar (out) | 7363 N |
| Theoretical force at 6 bar (return) | 6881 N |
| Piston rod diameter | 32 mm |
| Port thread | G1/2 |
| Catalogue reference | PDE3570TCEN, p.4, 6, 7, 8, 9, 14, 15, 16, 17, 18 |
Documents
Catalogues Literature
