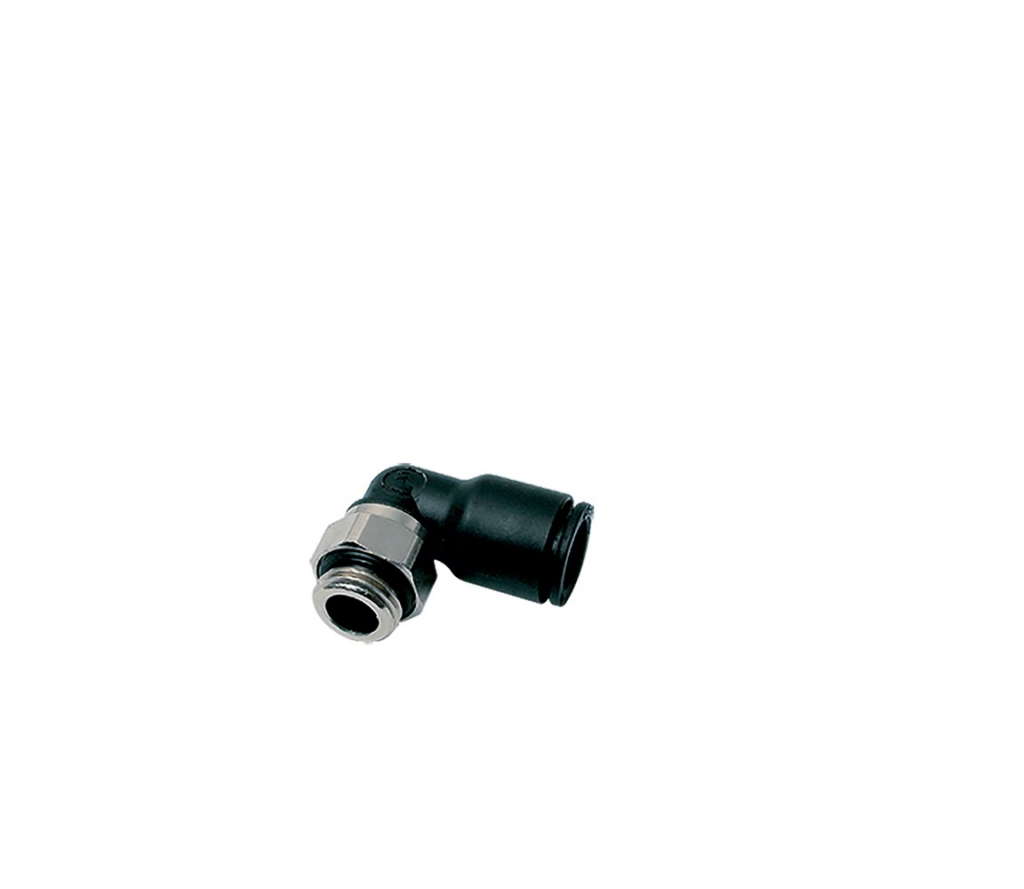

Parker Legris LF3000 8mm - 1/2"Bspp Male Stud Elbow
Overview
The Parker Legris LF3000 8mm to 1/2" BSPP male stud elbow is a push-to-connect fitting designed for robotics and industrial processing applications requiring reliable low-pressure fluid and gas handling.
This 90-degree elbow fitting simplifies pneumatic system assembly by eliminating the need for separate adapters. The technical polymer body with stainless steel gripping ring provides excellent chemical resistance and durability, whilst the NBR seals ensure consistent performance across the operating temperature range of -20°C to 80°C. The compact design accommodates 8mm tubing on one end and connects to G 1/2 BSPP threaded ports on the other, with a 24mm hex for secure installation and maintenance.
With a vacuum rating of 755 mm-Hg, this fitting performs reliably in both pressurised and evacuated systems common in industrial automation and process control environments. Supplied in convenient packs of ten, these proven connectors reduce assembly time and minimise leakage risks across manufacturing, robotics, and instrumentation applications.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | 24 |
| Weight | 0.027 kg |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Size | G 1/2 inch Thread |
| Connection 2 Type | Male, BSPP |
| Shape | Elbow 90° |
| Application | Textile, Pneumatics, Packaging, Automotive, Vacuum, Robotics |
| Connection 1 Type | Tube |
| Gripping Ring Material | Stainless Steel |
| Vacuum Pressure Rating | 755 mm-Hg |
| Hex Type | Hexagon Metric |
