Parker Hannifin Genuine

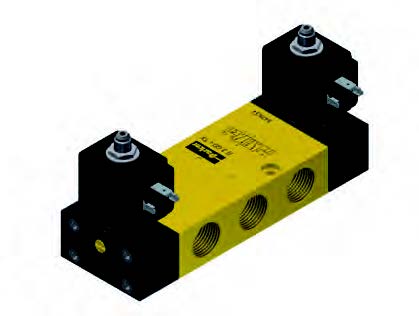

Parker Lucifer General Purpose 5/2 Dual Solenoid Anodized Aluminium Namur Valve Pilot Operated 1/2"Bsp NBR Orifice 12mm c/w Manual Override - No Coil - Coil Group 2.1
R5733,78Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Material
Anodized Aluminium
Temperature Range
-10 to 120 °C
Working media
compressed air and neutral gases; anodised aluminium bodies, with POM and 316L stainless variants
Overview
Parker Lucifer General Purpose 5/2 Dual Solenoid Anodized Aluminium Namur Valve Pilot Operated 1/2"Bsp NBR Orifice 12mm c/w Manual Override - No Coil - Coil Group 2.1
Specifications
| Port / connection | 1/2'' |
|---|---|
| Orifice | 12 |
| Temperature Range | -10 to 120 °C |
| Pressure | 2.5–10 bar |
| Material | Anodized Aluminium |
| Function | 5/2 |
| Seals | NBR |
| Working media | compressed air and neutral gases; anodised aluminium bodies, with POM and 316L stainless variants |
| Application | 5/2 and 5/3 pneumatic distributors — double-acting cylinder control, spring return, differential or double solenoid |
| Catalogue reference | Parker Namur Valve, p.8 |
