Parker Hannifin Genuine

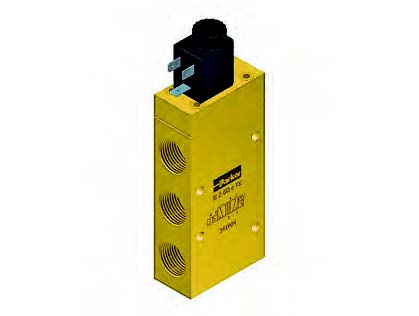

Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium N/C Valve Pilot Operated 1/2"Bsp NBR Orifice 12mm c/w Manual Override - No Coil - Coil Group 1.2
R5822,46Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 40 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
2.5 bar
Body Material
Anodized Aluminium
Function
Normally Closed
Overview
Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium N/C Valve Pilot Operated 1/2"Bsp NBR Orifice 12mm c/w Manual Override - No Coil - Coil Group 1.2
Specifications
| Function | Normally Closed |
|---|---|
| Maximum Operating Pressure | 2.5 bar |
| Body Material | Anodized Aluminium |
| Seal Material | NBR |
| Valve Type | 5-Way |
| Product Series | General Purpose Solenoid Valves |
| Electrical Connection | - |
| Maximum Fluid Temperature | n/a |
| Minimum Fluid Temperature | -10°C |
| Orifice Size | 12 mm |
| Port Size | 1/2" G |
| Power Supply Voltage | - |
| Specifications Met | - |
| Flow Coefficient 2 | n/a |
| Flow Coefficient 1 | 3000 L/min, n/a |
| Port Type | BSP |
| Orifice 2 Size | n/a |
| Coil Type | - |
| Orifice 1 Size | 12 mm |
| Number of Ports | 5 |
| Media | Air |
| Minimum Pressure Differential | 2 bar |
| Power Consumption | - W |
| Maximum Pressure Differential | 10 bar |
| Catalogue reference | Parker Lucifer Solenoid Valves General Catalogue 0112UK, p.290, 525 |
