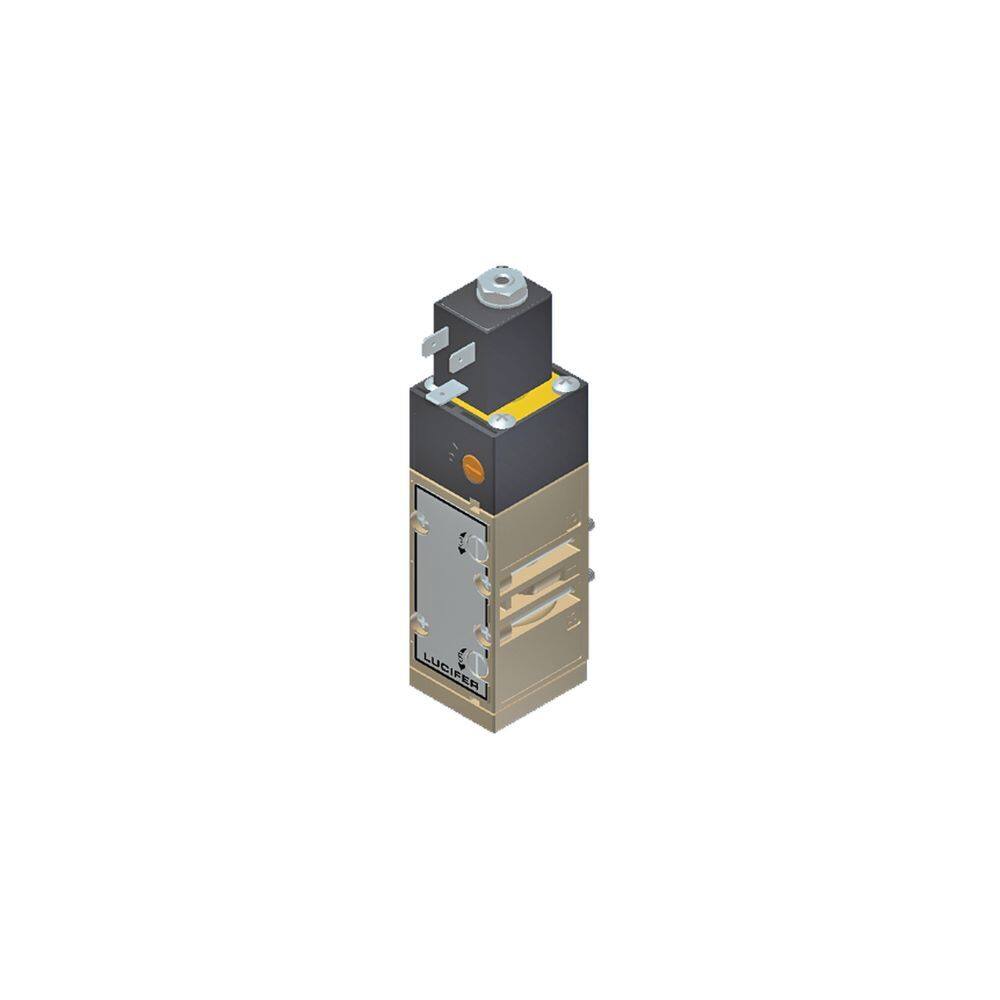

Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return POM Valve Pilot Operated CETOP Sub-Base FKM Orifice 8mm c/w Manual Override + Flow Regulator - No Coil - Coil Group 1.1
Overview
The L Series of Heavy Duty Poppet valves includes many product solutions for Valve Actuation in the Process Industry. This range delivers an unmatched high flow performance, up to 1400 l/min. The poppet design and materials makes this product extremely reliable either for low and high frequency applications making it the best choice for critical process control applications. This product solution modularity in combination with our ATEX coils program can optimize the total ownership costs delivering high reliability, extreme flexibility and best competitiveness.
Markets:
- Pharmaceutical
- Chemicals Production
- Refineries
- Food & Beverage production, storage
- Air & Gases production and treatment
Applications:
- Valve Actuation
Features/Benefits:
- SIL approved by third party
- Coil modularity
- Multiapproved coil including Atex
Specifications
| Function | SPRING RETURN |
|---|---|
| Maximum Operating Pressure | 10 bar AC/DC |
| Body Material | POM |
| Seal Material | NBR |
| Valve Type | 5/2 way |
| Actuation Type | PILOT OPERATED |
| Coil Power Consumption | - |
| Coil Temperature Range | - |
| Electrical Connection | - |
| Flow Coefficient | 800 l/min |
| Port Type | CETOP |
| Coil Specifications Met | - |
| Minimum Operating Pressure | 1 bar (AC or DC) |
| ATEX Specifications Met | - |
| Maximum Fluid Temperature | 75 °C |
| Catalogue reference | Parker Lucifer Solenoid Valves General Catalogue 0112UK, p.262, 525 |
