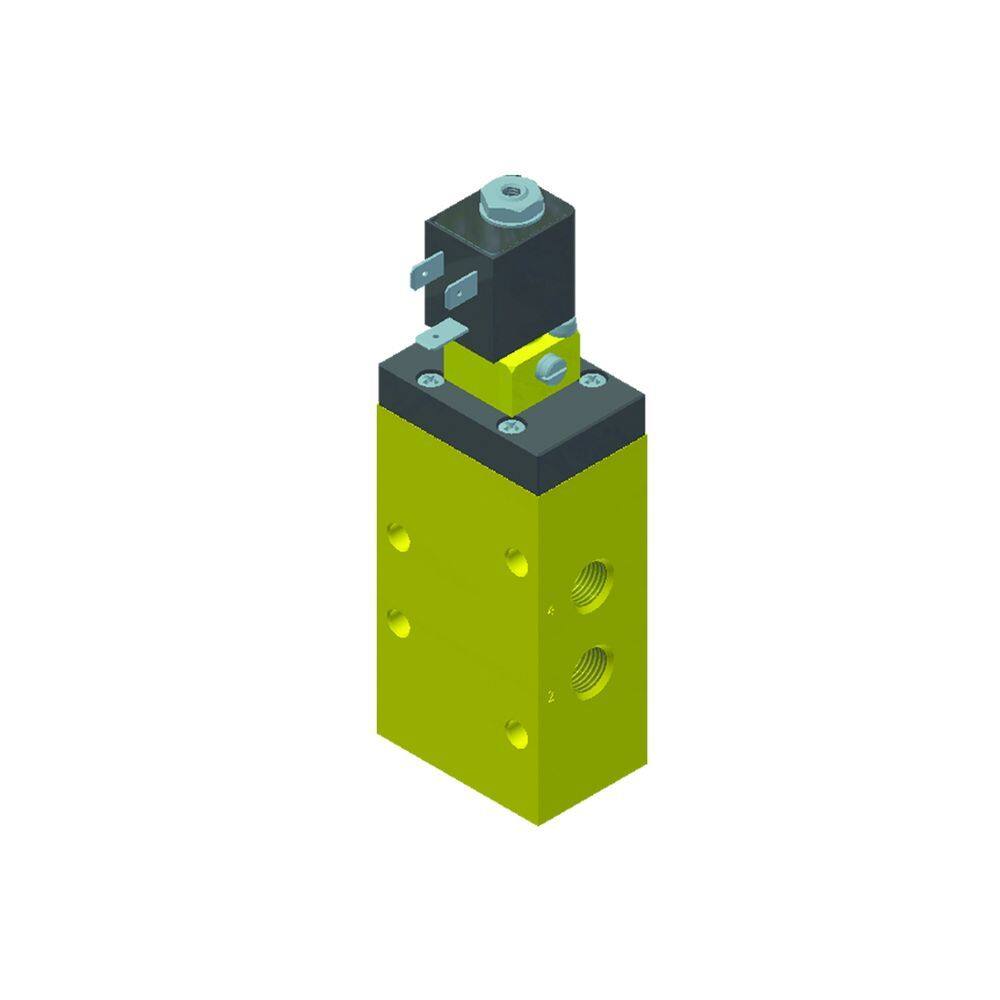

Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium Valve Pilot Operated 1/4"Bsp NBR Orifice 8mm - No Coil - Coil Group 1.1
Overview
The L Series of Heavy Duty Poppet valves includes many product solutions for Valve Actuation in the Process Industry. This range delivers an unmatched high flow performance, up to 1400 l/min. The poppet design and materials makes this product extremely reliable either for low and high frequency applications making it the best choice for critical process control applications. This product solution modularity in combination with our ATEX coils program can optimize the total ownership costs delivering high reliability, extreme flexibility and best competitiveness.
Markets:
- Pharmaceutical
- Chemicals Production
- Refineries
- Food & Beverage production, storage
- Air & Gases production and treatment
Applications:
- Valve Actuation
Features/Benefits:
- SIL approved by third party
- Coil modularity
- Multiapproved coil including Atex
Specifications
| Function | SPRING RETURN |
|---|---|
| Maximum Operating Pressure | 10 bar AC/DC |
| Body Material | Anodized aluminium |
| Seal Material | NBR |
| Valve Type | 5/2 way |
| Actuation Type | PILOT OPERATED |
| Coil Power Consumption | - |
| Coil Temperature Range | - |
| Electrical Connection | - |
| Flow Coefficient | 1400 l/min |
| Port Type | Pipe mounting |
| ATEX Specifications Met | - |
| Media | Air |
| Minimum Operating Pressure | 1 bar (AC or DC) |
| Minimum Fluid Temperature | -10 °C |
| Orifice Size | 8 mm |
| Maximum Fluid Temperature | 75 °C |
| Catalogue reference | Parker Lucifer Solenoid Valves General Catalogue 0112UK, p.258, 525 |
