Parker Hannifin Genuine

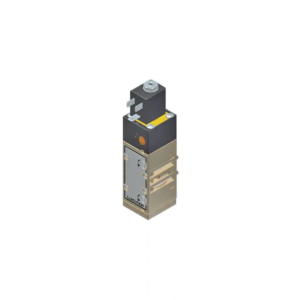

Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium N/C Valve Pilot Operated 1/4"Bsp NBR Orifice 8mm c/w Manual Override - No Coil - Coil Group 1.1
R4390,51Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 35 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar AC/DC
Body Material
Anodized aluminium
Function
NORMALLY CLOSED
Overview
Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium N/C Valve Pilot Operated 1/4"Bsp NBR Orifice 8mm c/w Manual Override - No Coil - Coil Group 1.1
Specifications
| Function | NORMALLY CLOSED |
|---|---|
| Maximum Operating Pressure | 10 bar AC/DC |
| Body Material | Anodized aluminium |
| Seal Material | NBR |
| Valve Type | 5/2-Way |
| Electrical Connection | - |
| Maximum Fluid Temperature | +80°C |
| Minimum Fluid Temperature | -25°C |
| Orifice Size | 8 mm |
| Port Size | G 1/4 |
| Power Supply Voltage | - |
| Specifications Met | Manual Override |
| Media | Air |
| Port Type | PIPE MOUNTING |
| ATEX Specifications Met | - |
| Coil Power Consumption | - |
| Actuation Type | Pilot Operated |
| Coil Specifications Met | - |
| Minimum Operating Pressure | 2 bar (AC or DC) |
| Coil Temperature Range | - |
| Catalogue reference | Parker Lucifer Solenoid Valves General Catalogue 0112UK, p.288, 358, 525 |
