Valves - Sub-base/Manifold Mounted
Parker’s sub-base and manifold-mounted valves provide a compact and modular solution for pneumatic and hydraulic control systems. Designed for easy integration, these valves are available in various configurations, including ISO standard and non-ISO designs, to suit a wide range of industrial automation applications requiring high flow rates, reliable performance, and simplified maintenance for demanding environments.
Size: ISO 5599-1 sizes 1, 2 and 3; ISO 15407-1 sizes 01 and 02; NG6 and NG10 on the hydraulic valves. - Temperature: -10°C to +60°C on the pneumatic ranges. - Application: sub-base and manifold mounted directional valves — the valve lifts off without breaking the pipework. - Media: air or inert gas, filtered 40 micron class 5 and dry class 4 to ISO 8573-1, on the pneumatic ranges; hydraulic oil on the D1VW and D3W ranges. - Pressure: 10 bar on solenoid pneumatic versions, 12 bar pneumatic-operated. Source: Parker ISOMAX DX PDE2568TCUK and the Parker directional valve catalogues
Browse Valves - Sub-base/Manifold Mounted by type
8 sub-categories · 191 SKUs total
Valvair II, SK200 & Speedking Valves
DX Series ISO 5599-1 Valves

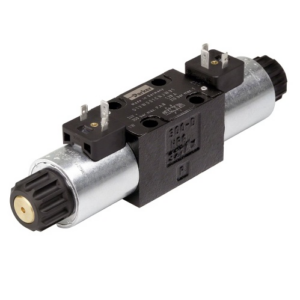

D1VW - NG6 Directional Control Valve

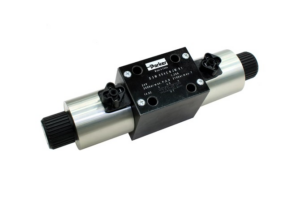

D3W - NG10 Directional Control Valve
Hydraulic Directional Control Valves
H Series ISO 5599-1 Valves

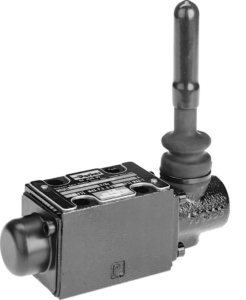

D1VL - NG6 / NG10 Hand Lever Directional Control Valve

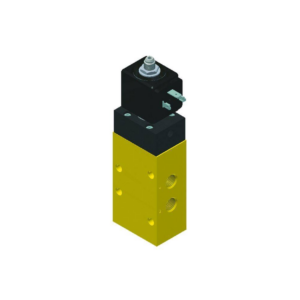

Lucifer 5/2 5/3 Pneumatic Distributors
All products in Valves - Sub-base/Manifold Mounted
Parker DX Series ISO 5599-1 3/2 N/C CNOMO Solenoid operator for 22 x 30 DIN Form B Coil - Pulse Non-Locking
1–12 bar 1–101
Parker DX Series ISO 5599-1 3/2 N/C CNOMO Solenoid operator for 22 x 30 DIN Form B Coil - Pulse Non-Locking
1–12 bar 1–101
Parker DX Series ISO1 1/4"Bspp Bottom Ported Manifold VDMA Form C - ISO 5599-1
0.5–40 bar 1/8"–1/2"
Parker DX Series ISO1 1/4"bspp Side Ported Subbase VDMA - ISO 5599-1
0.5–40 bar 1/8"–1/2"
Parker DX Series ISO1 3/8"Bspp End Plate VDMA Form D - ISO 5599-1
0.5–40 bar 1/8"–1/2"
Parker DX Series ISO1 5/2 Double Pilot Valve ISO 5599-1
1–12 bar -10 to 60 °C
Parker DX Series ISO1 5/2 Double Solenoid Valve c/w CNOMO Operator ISO 5599-1 - NO COIL
1–12 bar -10 to 60 °C
Parker DX Series ISO1 5/2 Single Pilot / Differential Return Valve ISO 5599-1
1–12 bar -10 to 60 °C
Parker DX Series ISO1 5/2 Single Pilot / Spring Return Valve ISO 5599-1
1–12 bar -10 to 60 °C
