Valvair II, SK200 & Speedking Valves
Size: 1/4", 3/8" and 1/2" basic valves on sub-bases and manifolds; manifold port adapters to 1" NPTF; Cv to 4.8. - Temperature: ambient 0°F to 125°F (-18°C to +52°C) on solenoid operators (100°F/38°C continuous duty); -18°C to +93°C on remote pilot valves. Air below freezing must be moisture-free. - Application: 4-way 2-position and 3-position sub-base and manifold valves — full air operation for fastest response, plug-in option for maintenance without disturbing wiring or plumbing. - Media: compressed air, lubricated or non-lubricated; vacuum only on external/remote-pilot double valves (within 1" Hg of perfect). Aluminium body, hard-chrome 416 stainless or coated aluminium spool, nitrile and polyurethane seals. - Pressure: solenoid valves 2,4–9,7 bar (35–140 psig) internal pilot, 13,8 bar (200 psig) solenoid optional; external pilot main 0–17,2 bar (0–250 psig); remote pilot single 2,4–17,2 bar, double and 3-position 0–17,2 bar with pilot 2,4–13,8 bar. Range STAMP — Parker Pneumatic Valve Products, Catalog 0600P-13, Valvair II Series, pp. D270–D295
Browse Valvair II, SK200 & Speedking Valves by type
1 sub-categories · 29 SKUs total
All products in Valvair II, SK200 & Speedking Valves

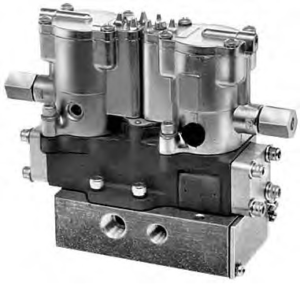

Parker SpeedKing, SK200 Series 4/2 Double Solenoid 1/4"Npt Subbase/Manifold Plug-In Valve w/Locking Override, Std Service - 110Vac
4/2 sub-base/manifold valve -18 to +52
Parker SpeedKing, SK200 Series 4/2 Double Solenoid 1/4"Npt Subbase/Manifold Plug-In Valve w/Locking Override, Std Service - 24Vdc
4/2 sub-base/manifold valve 2,4–9,7 bar int. pilot
Parker SpeedKing, SK200 Series 4/2 Double Solenoid 1/4"Npt Subbase/Manifold Plug-In Valve w/Locking Override, Std Service - No Coil
4/2 sub-base/manifold valve 2,4–9,7 bar int. pilot
Parker Valvair II Series 5/2 Double Solenoid 1"Npt Subbase/Manifold Plug-In Valve w/Light & Locking Override, Std Service - 110Vac
4/2 sub-base/manifold valve 2,4–9,7 bar int. pilot
Parker Valvair II Series 5/2 Double Solenoid 3/8"Npt Subbase/Manifold Plug-In Valve w/Locking Override, Std Service - 220Vac
4/2 sub-base/manifold valve -18 to +52
Parker Valvair II Series 5/3 APB Double Solenoid 3/8"Npt Subbase/Manifold Plug-In Valve w/Light & Locking Override, Std Service - 110Vac
4/2 sub-base/manifold valve -18 to +52
Parker Valvair II Series 5/3 EXH Double Solenoid 3/8"Npt Subbase/Manifold Plug-In Valve w/Light & Locking Override, Std Service - 110Vac
4/2 sub-base/manifold valve -18 to +52
Parker Valvair II Series 5/3 INL Double Solenoid 3/8"Npt Subbase/Manifold Plug-In Valve w/Light & Locking Override, Std Service - 110Vac
4/2 sub-base/manifold valve 2,4–9,7 bar int. pilot
Parker SpeedKing, SK200 Series 5/2 Single Solenoid 1/2"Npt Subbase/Manifold Plug-In Valve w/Locking Override, STD Service - 110Vac
4/2 sub-base/manifold valve -18 to +52
