Parker Hannifin Genuine
Product image not available

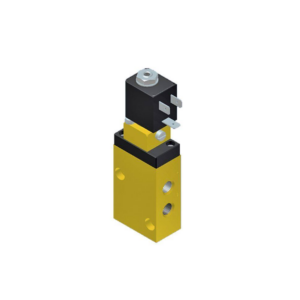

Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium N/C Valve Pilot Operated 1/4"Bsp NBR Orifice 8mm c/w Manual Override - C/W 24VDC COIL
R5094,65Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 70 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
2 bar
Body Material
Anodized Aluminium
Function
Normally Closed
Overview
Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium N/C Valve Pilot Operated 1/4"Bsp NBR Orifice 8mm c/w Manual Override - C/W 24VDC COIL
Specifications
| Function | Normally Closed |
|---|---|
| Maximum Operating Pressure | 2 bar |
| Body Material | Anodized Aluminium |
| Seal Material | NBR |
| Valve Type | 5-Way |
| Electrical Connection | 2P+E plug according to EN 175301-803 type B |
| Maximum Fluid Temperature | +50°C |
| Minimum Fluid Temperature | -25°C |
| Orifice Size | 8 mm |
| Port Size | 1/4" G |
| Power Supply Voltage | 2.5 W |
| Specifications Met | - |
| Minimum Pressure Differential | 2 bar |
| Maximum Pressure Differential | 10 bar |
| Flow Coefficient 2 | n/a |
| Number of Ports | 5 |
| Actuation Type | Pilot Operated |
| Coil Type | Coil for DIN plug connection, low power, 22 mm |
| Coil Specifications Met | IP65 |
| Flow Coefficient 1 | 1400 L/min, n/a |
| Port Type | BSP |
| Media | Air |
| Power Consumption | 2 W |
| Orifice 2 Size | n/a |
| Orifice 1 Size | 8 mm |
| Catalogue reference | Parker Lucifer Solenoid Valves General Catalogue 0112UK, p.288, 358, 525 |
