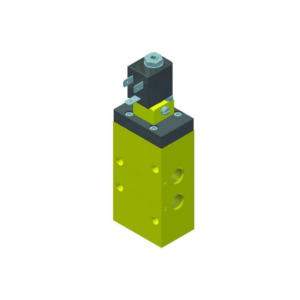

Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium Valve Pilot Operated Sub-Base NBR Orifice 6mm - No Coil - Coil Group 2.1
R11986,14Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 35 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar AC/DC
Body Material
Anodized aluminium
Function
SPRING RETURN
Overview
Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium Valve Pilot Operated Sub-Base NBR Orifice 6mm - No Coil - Coil Group 2.1
Specifications
| Function | SPRING RETURN |
|---|---|
| Maximum Operating Pressure | 10 bar AC/DC |
| Body Material | Anodized aluminium |
| Seal Material | NBR/PUR |
| Valve Type | 5/2 way |
| ATEX Specifications Met | - |
| Flow Coefficient | 9 l/min |
| Maximum Fluid Temperature | +75°C |
| Orifice Size | 6 mm |
| Port Size | Ø 7 mm |
| Port Type | SUB-BASE MOUNTING |
| Specifications Met | With manual override and flow regulator. Pilot seat in PUR. |
| Media | Inert Gases, Air |
| Insulation Class | n/a |
| Actuation Type | Pilot Operated |
| Minimum Fluid Temperature | -25 °C |
| Catalogue reference | Parker Lucifer Solenoid Valves General Catalogue 0112UK, p.252, 525 |
