Spray Nozzles

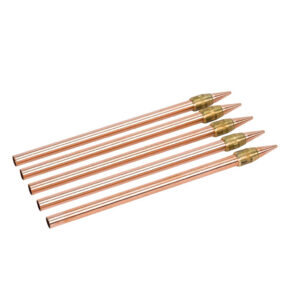

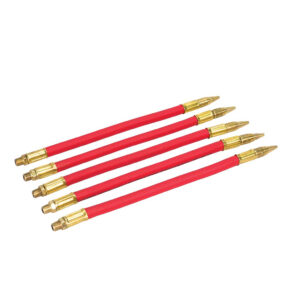

Size: 1703 fogging, 1707 humidifying and 1713/1733 atomizing nozzles with 1/4"-18 NPT ports and a 22 mm (7/8") nozzle diameter, plus the 1200, 1201, 1203, 1204, 1206 and 1220 air nozzles and the 9401 blow gun. - Temperature: not printed on the spec sheets. - Application: fogging, humidifying and atomizing for coating, cooling, dust suppression and moisture addition; the air nozzles are for blow-off and part cleaning. - Media: clean, dry compressed air plus water or liquid to 1 100 cPs maximum viscosity; a liquid strainer and filter is included. - Pressure: liquid pressure 0,1 to 1,4 bar (2 to 20 psig); air specifications are published at 100 psig (6,9 bar). Liquid flow 23 to 114 l/hr (6 to 30 gal/hr) and droplet size 60 to 200 µm on the atomizing nozzle. Range STAMP — Vortec spray nozzle and air nozzle spec sheets, vortec.com, 2026
