Parker Hannifin Genuine

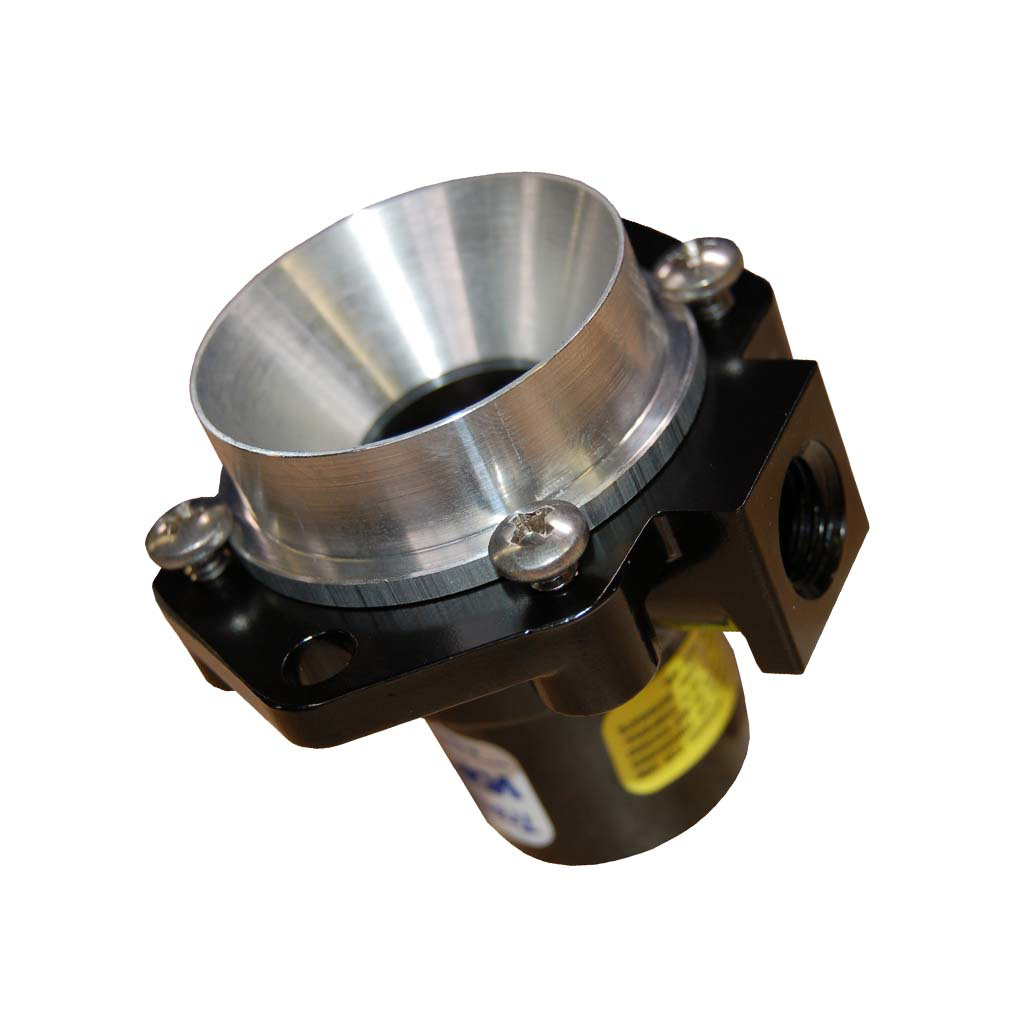

ITW Vortec Air Amplifier. Part No: 902
R6681,03
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · 2 weeks
Or request a confirmed lead time for this SKU →
Size / port thread
20 mm throat, 1/4" NPT (F)
Nominal flow Qn
17 SCFM (482 SLPM)
Application
blow-off
Specifications
| Size / port thread | 20 mm throat, 1/4" NPT (F) |
|---|---|
| Nominal flow Qn | 17 SCFM (482 SLPM) |
| Application | blow-off |
| Media | clean, dry compressed air |
| Cooling capacity | 204 SCFM |
| Cooling capacity (detail) | 204 SCFM (5 773 SLPM) ducted output, 12:1 |
| Application (detail) | blow-off, drying, cleaning, cooling and conveying |
| Reference pressure (detail) | Specifications are for 100 psig (6,9 bar) compressed air; no maximum supply pressure is published. |
| Catalogue reference (detail) | Vortec — Air Movers |
| Catalogue reference | Vortec spec sheet – Air Flow Amplifier – 2-13/32" |
Documents
Catalogues Literature
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →
