Parker Hannifin Genuine

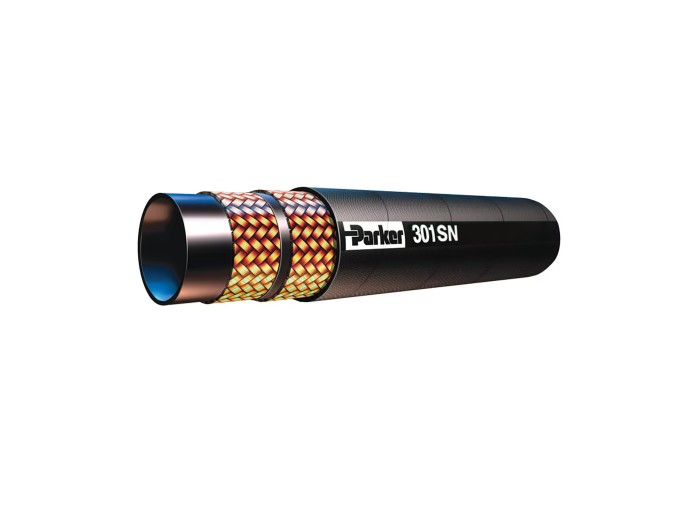

Parker 301SN 2 Wire Braided Synthetic Rubber Hose ID 1/4
R197,32Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
In stock · Ships from Johannesburg
Maximum Operating Pressure
400 bar, 40 MPa
Temperature Range
-40°C to +100°C (Water 85°C / Air 70°C)
Hose I.D. (size)
-4
Overview
Parker's No-Skive Medium Pressure hose 301SN is designed for a working pressure up to 40,0 MPa and a temperature range from -40 °C up to +100 °C. The hose range is compatible with No-Skive fittings in steel and stainless steel.
Specifications
| Maximum Operating Pressure | 400 bar, 40 MPa |
|---|---|
| Temperature Range | -40°C to +100°C (Water 85°C / Air 70°C) |
| Outside Diameter | 15 mm |
| Weight | 0.39 kg/m |
| Compatible Fitting | 48 Series |
| Product Type | Hydraulic Hose |
| Hose Cover Type | Standard |
| Hose I.D. (size) | -4 |
| Media | Lubricants (Oils), Petroleum Hydraulic Fluids, Fuels - Check fuel type with our catalogue chart., Coolants (Glycol), Air, Coolants (Glycol, Water |
| Design Factor | 4:1 |
| Minimum Bend Radius | 100 mm |
| Specifications Met | EN 853, Type 2SN, ISO 1436, Type 2, SAE 100R2, Type AT |
| Cover Material | Synthetic Rubber |
| Inside Diameter | 6.4 mm |
| Hose Reinforcement Material | 2 Braids of High Tensile Wire |
| Application | Medium Pressure Hydraulics |
| Hose Inner Tube Material | Nitrile Butadiene Rubber (NBR) |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.75, 193, 199 |
Documents
Catalogues Literature
Compliance · Certifications · Safety
Parker Safety Guide for Selecting Hose, Tubing, Fittings and Accessories--(English)
301SN_301TC_421SN_DNV_expire_June2027--(English)
VG95211 Military Designation of Products--(English)
301SN_421SN_H29_H31_R42_301TC_H29TC_H31TC_ H42TC_H29ST_H31ST_LR_TA_ Marine_expire_ Feb2026--(English)
ROHS_III_Declaration--(English)
301SN_421SN_H29_H31_ R42_301TC_ H29TC_ H31TC_H42TC_H29ST_ H31ST_LR_TA_ expire_ Feb2026--(English)
301SN_RINA
301SN_421SN_BV_TA_18886_expire_Apr2027
