Parker Hannifin Genuine
Parker 301SN 2 Wire Braided Synthetic Rubber Hose ID 3/8
R590,84Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 70 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
330 bar, 33 MPa
Temperature Range
-40°C to +100°C (Water 85°C / Air 70°C)
Hose I.D. (size)
-6
Overview

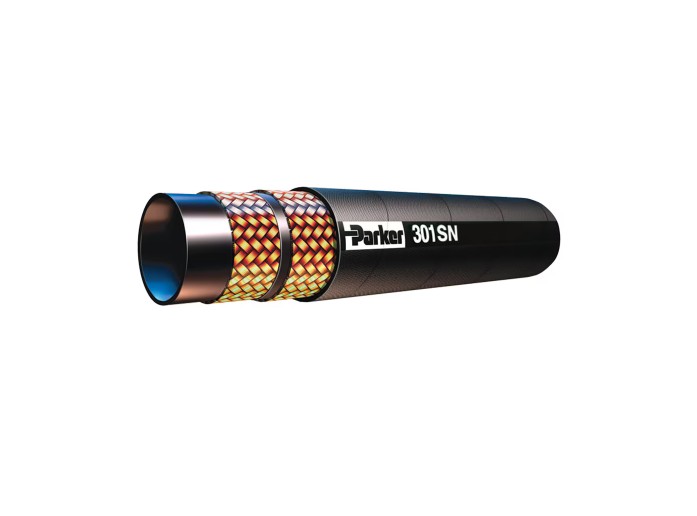

Parker 301SN 2 Wire Braided Synthetic Rubber Hose ID 3/8
Specifications
| Maximum Operating Pressure | 330 bar, 33 MPa |
|---|---|
| Temperature Range | -40°C to +100°C (Water 85°C / Air 70°C) |
| Outside Diameter | 19 mm |
| Weight | 0.55 kg/m |
| Compatible Fitting | 48 Series |
| Product Type | Hydraulic Hose |
| Hose Cover Type | Standard |
| Hose I.D. (size) | -6 |
| Inside Diameter | 9.5 mm |
| Media | Water, Fuels - Check fuel type with our catalogue chart., Coolants (Glycol, Air, Petroleum Hydraulic Fluids, Coolants (Glycol), Lubricants (Oils) |
| Cover Material | Synthetic Rubber |
| Application | Medium Pressure Hydraulics |
| Minimum Bend Radius | 130 mm |
| Specifications Met | EN 853, Type 2SN, ISO 1436, Type 2, SAE 100R2, Type AT |
| Design Factor | 4:1 |
| Hose Inner Tube Material | Nitrile Butadiene Rubber (NBR) |
| Hose Reinforcement Material | 2 Braids of High Tensile Wire |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.199 |
Documents
Catalogues Literature
Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK – catalogue page for this product (p.199)
Compliance · Certifications · Safety
Parker Safety Guide for Selecting Hose, Tubing, Fittings and Accessories--(English)
301SN_301TC_421SN_DNV_expire_June2027--(English)
VG95211 Military Designation of Products--(English)
301SN_421SN_H29_H31_R42_301TC_H29TC_H31TC_ H42TC_H29ST_H31ST_LR_TA_ Marine_expire_ Feb2026--(English)
ROHS_III_Declaration--(English)
301SN_421SN_H29_H31_ R42_301TC_ H29TC_ H31TC_H42TC_H29ST_ H31ST_LR_TA_ expire_ Feb2026--(English)
301SN_RINA
301SN_421SN_BV_TA_18886_expire_Apr2027
