Parker 43 Series Hose Fitting - Female ORFS Swivel Short - 5/8" (-10) - Hose -8 - Steel
Overview
Parker 43 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes. ORFS (O-ring face seal, ISO 8434-3 / SAE J1453) ends seal on an elastomer O-ring held in a flat face, giving a leak-free, vibration-resistant connection.

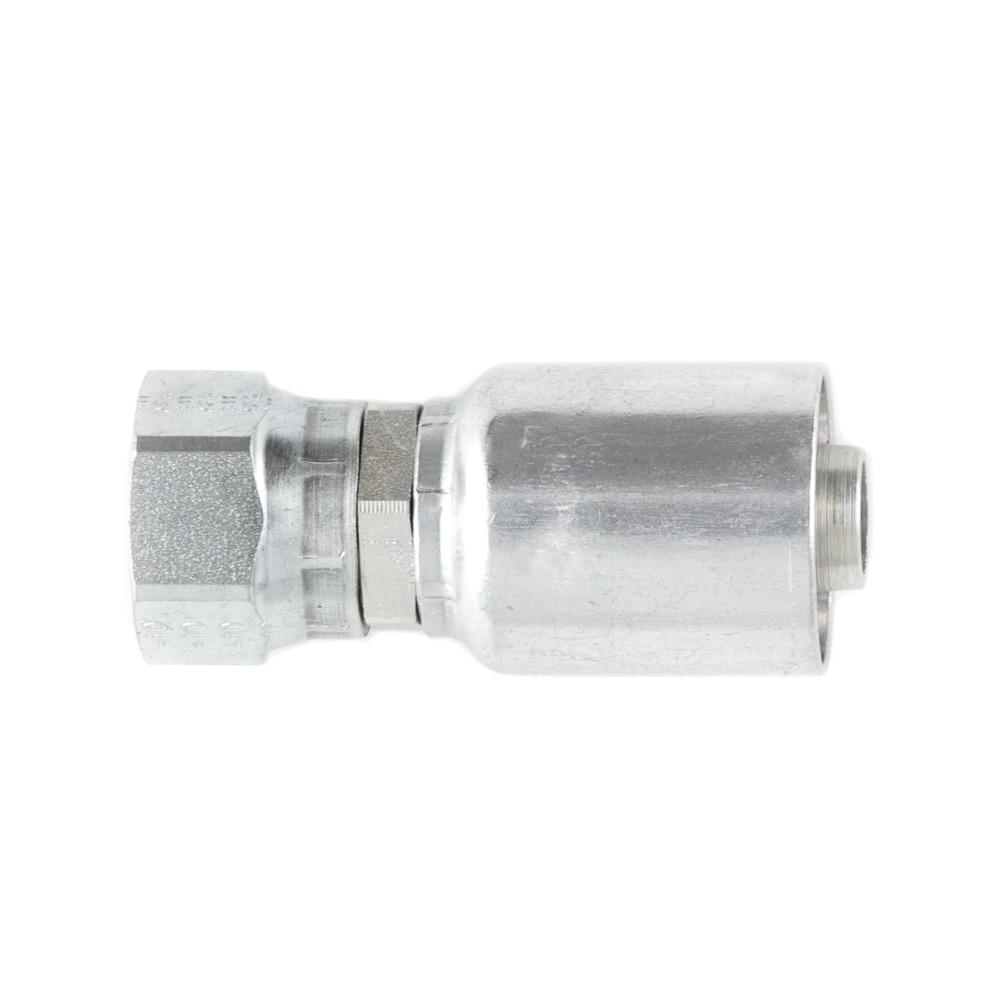

The 1JC43-10-8 is a Parker 43 Series Hose Fitting with a female ORFS swivel short end (5/8" (-10)) for size -8 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Dimensions, pressure ratings and ordering details are on page 250 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Hose Inside Diameter | -8 (Size), 1/2" |
|---|---|
| Port Size | 5/8" |
| Product Style | Female Seal-Lok® - Swivel |
| Shape | Straight Short |
| Body Material | Steel |
| Nut Hex Size | 1-1/8" |
| Back-Up Hex Size | 13/16" |
| Specifications Met | ISO 12151-1-SWSA / SAE J516 |
| Quantity per Box | 5 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.250 |
