Parker 77 Series Hose Fitting - SAE Code 61 Flange Head (SFL) - 1/2" Flange - Hose -8 - Stainless Steel
Overview
Parker 77 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

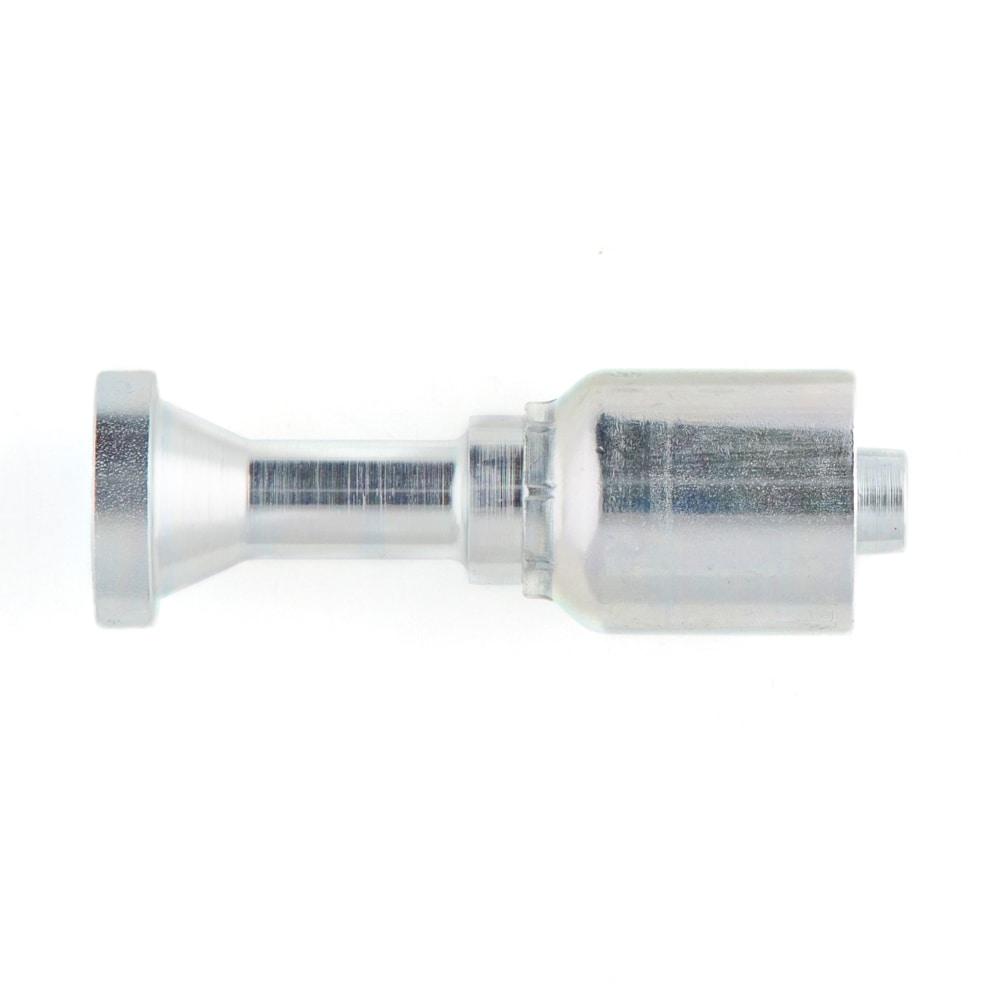

The 11577-8-8C is a Parker 77 Series Hose Fitting with a SAE Code 61 flange head (SFL) end (1/2" flange) for size -8 hose, in stainless steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Dimensions, pressure ratings and ordering details are on page 395 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Hose Inside Diameter | -8 (Size), 1/2" |
|---|---|
| Port Size | 1/2" |
| Flange Size | 1/2" |
| Product Style | SAE Code 61 Flange Head |
| Shape | Straight |
| Body Material | Stainless Steel |
| Specifications Met | ISO 12151-3-S-L |
| Quantity per Box | 5 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.395 |
Documents
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →

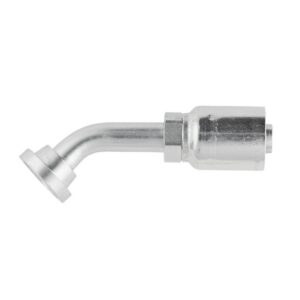

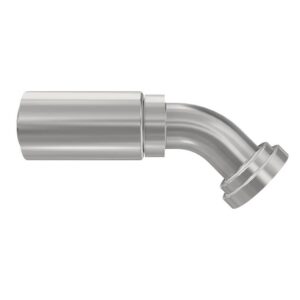

Parker 77 Series Hose Fitting - SAE Code 61 Flange Head (SFL) - 45° Elbow - 3/4" Flange - Hose -12 - Steel
