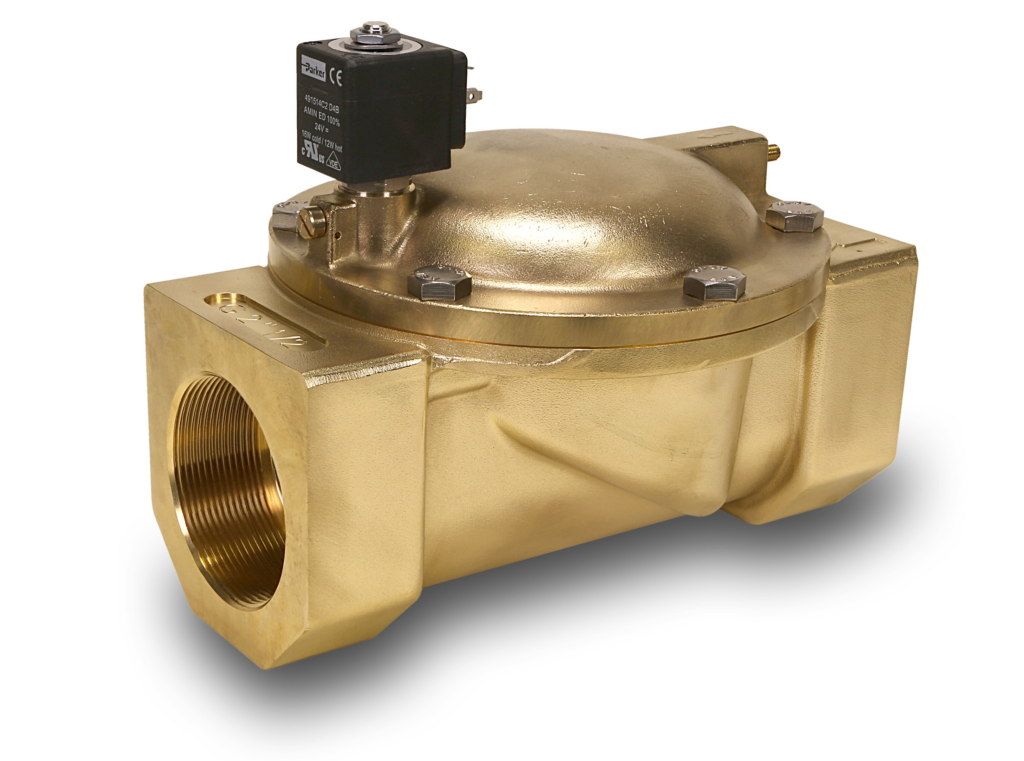

Parker General Purpose 2/2 Brass Valve Pilot Operated N/C 3"Bsp NBR 7321BMN02 Orifice 75mm c/w Manual Override Anti-Water Hammer - No Coil - Coil Group 2.0
Overview
443803W - Parker General Purpose 2/2 Brass Valve Pilot Operated N/C 3"Bsp NBR 7321BMN02 Orifice 75mm c/w Manual Override Anti-Water Hammer - No Coil - Coil Group 2.0
The 7321B/7322B Series Pilot (Servo) operated solenoid valves includes many options to fullfill the demand of the most challenging applications in Industrial and Process markets, when a precise and reliable control of Water, Light oils and Neutral Liquids control is required. The solid and robust design includes brass bodies and a stainless steel operator, rated for millions of life cycles. This product solution can optimize the total ownership costs in a broad range of heavy duty and high demanding applications, in safe or harsh environments, including ATEX.
Suitable for all Parker Lucifer coils corresponding to coil group 2.0
Markets:
– Industrial
– Plumbing
Applications:
– Irrigation
– Water Distribution
– Carwash
– Cooling and climate
– Fire Fighting
Features/Benefits:
– Anti water hammer effect
– Coil modularity
– Best in class flow rate
Specifications
| Function | 2 Way Valves 2/2 Anti Water Hammer Valves Pilot Operated Brass Pipe Mounting Normally Closed |
|---|---|
| Port size | 3" BSP |
| Operating pressure | 0.2–10 bar (AC) / 0.2–10 bar (DC) |
| Fluid temperature | -10°C to +90°C |
| Seat seal | NBR |
| Coil group | 8 |
| Power (AC / DC) | 9 W / 2.0 W |
| Valve code | 443803W |
| Catalogue reference | Solenoid Valves for Fluid Control General Catalogue 0112UK V2.2 2022, p.92, 526 |
