Parker Global P31 Mini Angle Bracket for Filter & Filter / Regulator
Overview
The Parker Global P31 Mini Series is the compact 40 mm body width air preparation range in Parker's modular Global Air Preparation system. It offers Filter, Regulator, Lubricator combinations and individual modules in G1/4 and G3/8 port sizes, with auto/pulse/manual drain options, polycarbonate or metallic bowl, and non-relieving regulator options at 2, 4 or 16 bar. The P31 Mini shares body connector kits with the P33 Standard Series for mixed-size FRL builds.
Markets:
- Industrial automation
- Packaging
- Process control
- Mobile / off-highway air preparation
Applications:
- Air conditioning ahead of pneumatic actuators and valves
- Low-flow point-of-use filtration / lubrication
- Pressure regulation upstream of cylinders, tools and instruments
Features/Benefits:
- Compact 40 mm body footprint
- Modular (mixes with P33 Standard via shared body kit)
- Multiple regulator pressure options (2, 4, 16 bar)
- Polycarbonate or metallic bowl
- Manual or pulse drain
Specifications
| Maximum Operating Pressure | 0–17 bar |
|---|---|
| Size / port thread | 1/4"–3/4" BSP |
| Temperature Range | -10°C to +52°C |
| Working media | Compressed air |
| Application | Spare or accessory for P31 filter/regulator. Ordered as its own line. |
| Pressure (detail) | 10 bar max with a polycarbonate bowl, 17 bar with a metal bowl; adjustment ranges 0-2, 0-4, 0-8 and 0-16 bar. Source: PDE2676TCUK, pp.40, 42, 44 |
| Size (detail) | 1/4", 3/8", 1/2" and 3/4" BSP — P31EB mini, P32EB compact, P33EA standard |
| Temperature (detail) | -10°C to +52°C with a polycarbonate bowl; to +65.5°C with a metal bowl (P33EA from -25°C) |
| Catalogue reference | Parker Pneumatic Global Air Preparation System PDE2676TCUK, p.27, 29, 41, 68 |

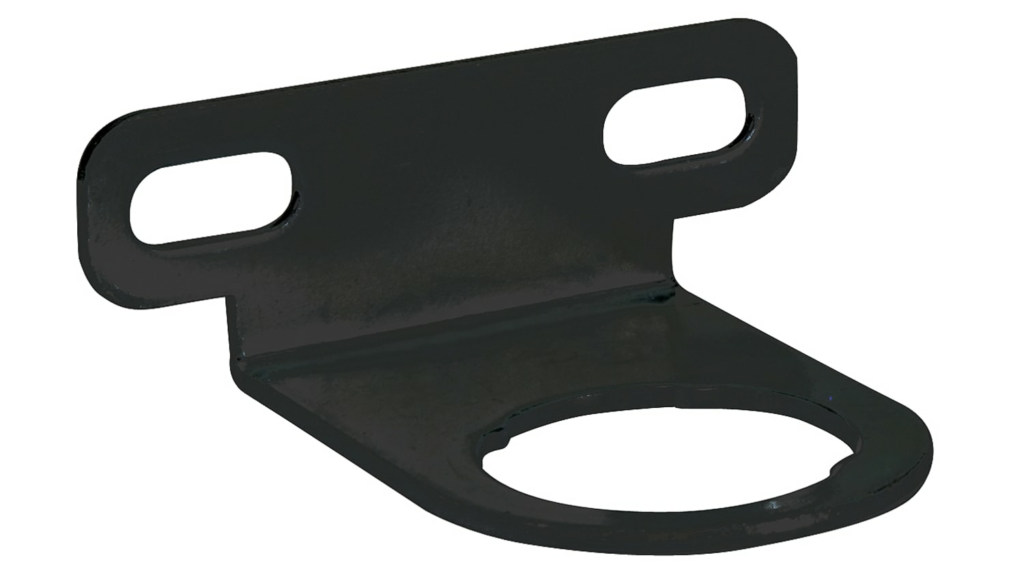

| Description | Angle bracket, fits the regulator and filter/regulator body, attaches via the panel nut |
