Parker Hannifin Genuine

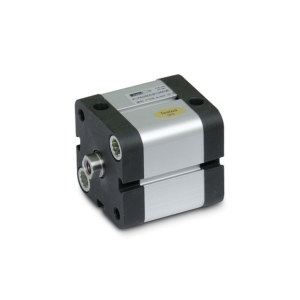

Parker ISO 15552, ISO 21287 FLANGE MF1/MF2 25MM BORE
Price on Request
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
0.5–10 bar
Size / port thread
5–100 mm
Temperature Range
-20°C to +80°C
Overview
Parker ISO 15552, ISO 21287 FLANGE MF1/MF2 25MM BORE
Specifications
| Maximum Operating Pressure | 0.5–10 bar |
|---|---|
| Size / port thread | 5–100 mm |
| Temperature Range | -20°C to +80°C |
| Working media | dry filtered compressed air to ISO 8573-1:2010 class 3.4.3 |
| Application | short-body actuation where axial space is tight; standard or guided, double acting or single acting |
| Pressure (detail) | 0.5 to 10 bar. Source: Parker PDE2660TCUK, ISO 21287 |
| Size (detail) | bore 20, 25, 32, 40, 50, 63, 80 and 100 mm; stroke 5 to 100 mm standard, longer on request |
| Temperature (detail) | set by the seal — -20°C to +80°C standard (S); -10°C to +120°C high temperature (F); -40°C to +80°C low temperature (L). Code F is non-magnetic — no position sensing |
| Catalogue reference | Parker Pneumatic P1P Pneumatic Cylinders Catalogue PDE2660TCUK, p.17, 18 |
