P1P Compact Cylinder Ø20 to 100mm
The P1P ISO 15552 actuator in bore sizes Ø20 to Ø100mm is an ISO 15552 / 21287 compact cylinder for standard temperature -20°C to +80°C with high and low temperature options suitable for processing, packaging and handling applications.
Size: bore 20, 25, 32, 40, 50, 63, 80 and 100 mm; stroke 5 to 100 mm standard, longer on request. - Temperature: set by the seal — -20°C to +80°C standard (S); -10°C to +120°C high temperature (F); -40°C to +80°C low temperature (L). Code F is non-magnetic — no position sensing. - Application: short-body actuation where axial space is tight; standard or guided, double acting or single acting. - Media: dry filtered compressed air to ISO 8573-1:2010 class 3.4.3. - Pressure: 0.5 to 10 bar. Source: Parker PDE2660TCUK, ISO 21287
Parker P1P Series ISO 21287 32mm Bore x 10mm Stroke Compact STD Cylinder STD Temp Female
-20 to 80 °C Dry filtered compressed air (ISO 8573-1 class 3.4.3)
Parker P1P Series ISO 21287 32mm Bore x 80mm Stroke Compact STD Cylinder STD Temp Male
0.5–10 bar 5–100 mm
Parker P1P Series ISO 21287 50mm Bore x 30mm Stroke Compact STD Cylinder STD Temp Female
-20 to 80 °C Dry filtered compressed air (ISO 8573-1 class 3.4.3)
Parker ISO 15552, ISO 21287 CLEVIS BRACKET MP4 20MM BORE
0.5–10 bar 5–100 mm
Parker ISO 15552, ISO 21287 CLEVIS BRACKET MP4 25MM BORE
0.5–10 bar 5–100 mm
Parker ISO 15552, ISO 21287 FLANGE MF1/MF2 20MM BORE
0.5–10 bar 5–100 mm

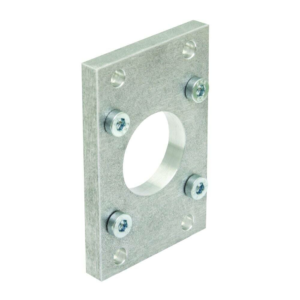

Parker ISO 15552, ISO 21287 FLANGE MF1/MF2 25MM BORE
0.5–10 bar 5–100 mm
Parker ISO 15552, ISO 21287 FOOT BRACKET MS1 20MM BORE
0.5–10 bar 5–100 mm
Parker ISO 15552, ISO 21287 FOOT BRACKET MS1 25MM BORE
0.5–10 bar 5–100 mm
