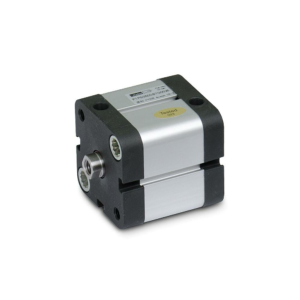

Parker P1P Series ISO 21287 50mm Bore x 30mm Stroke Compact STD Cylinder STD Temp Female
Overview
Parker P1P ISO 21287 Compact Cylinders are short-body double-acting actuators with magnetic piston, available in bores from 20 to 100 mm and strokes up to 500 mm. Featuring a stainless steel piston rod, elastic cushioning, and a female-threaded rod end. The compact body suits installations with tight axial space; the cylinder accepts ISO 15552 mounting accessories and Parker P8S magnetic sensors.
Markets:
- Industrial automation
- Packaging
- Manufacturing
Applications:
- Compact linear motion in space-constrained machines
- Material handling and clamping
- Short-stroke positioning
Features/Benefits:
- ISO 21287 compact body
- Stainless steel piston rod
- Elastic cushioning
- Optional ISO 15552 mountings
- Optional magnetic sensors
- 10 bar, -20 °C to +80 °C
Specifications
| Size | bore 50 mm, stroke 30 mm |
|---|---|
| Temperature Range | -20 to 80 °C |
| Pressure | 0.5–10 bar |
| Working media | Dry filtered compressed air (ISO 8573-1 class 3.4.3) |
| Description | P1P compact ISO 21287 cylinder, bore 50 mm, stroke 30 mm, double acting, female piston rod thread, magnet fitted. Seals: |
| Application | short-body actuation where axial space is tight; standard or guided, double acting or single acting |
| Catalogue reference | Parker Pneumatic P1P Pneumatic Cylinders Catalogue PDE2660TCUK, p.9 |
