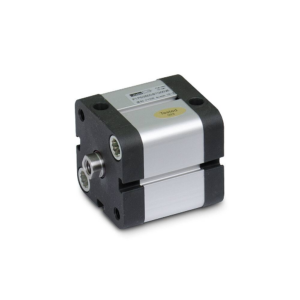

Parker P1P Series ISO 21287 32mm Bore x 80mm Stroke Compact STD Cylinder STD Temp Male
Overview
Parker P1P ISO 21287 Compact Cylinders are short-body double-acting actuators with magnetic piston, available in bores from 20 to 100 mm and strokes up to 500 mm. Featuring a stainless steel piston rod, elastic cushioning, and a female-threaded rod end. The compact body suits installations with tight axial space; the cylinder accepts ISO 15552 mounting accessories and Parker P8S magnetic sensors.
Markets:
- Industrial automation
- Packaging
- Manufacturing
Applications:
- Compact linear motion in space-constrained machines
- Material handling and clamping
- Short-stroke positioning
Features/Benefits:
- ISO 21287 compact body
- Stainless steel piston rod
- Elastic cushioning

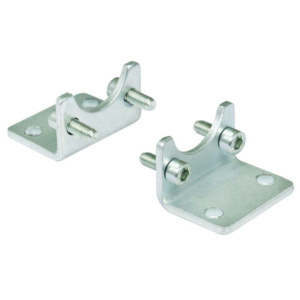

- Optional ISO 15552 mountings
- Optional magnetic sensors
- 10 bar, -20 °C to +80 °C
Specifications
| Bore | 32 mm |
|---|---|
| Stroke | 80 mm |
| Standard | ISO 21287 |
| Maximum Operating Pressure | 0.5–10 bar |
| Size / port thread | 5–100 mm |
| Temperature Range | -20°C to +80°C |
| Working media | dry filtered compressed air to ISO 8573-1:2010 class 3.4.3 |
| Application | short-body actuation where axial space is tight; standard or guided, double acting or single acting |
| Catalogue reference | PDE2660, p.9, 10, 17, 18, 20 |
