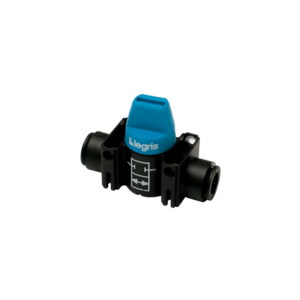

Parker Legris 2/2 In-Line Mini Ball Valve 10mm
Parker Hannifin Genuine
R374,09Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 30 days
Maximum Operating Pressure
10 bar, 1 MPa
Body Material
Polymer
Temperature Range
-20°C to +80°C
Overview
Parker Legris 2/2 In-Line Mini Ball Valve 10mm
Specifications
| Function | 2-Way |
|---|---|
| Connection Size | 10 mm |
| Connection Type | Push-in |
| Maximum Operating Pressure | 10 bar, 1 MPa |
| Temperature Range | -20°C to +80°C |
| Body Material | Polymer |
| Seal Material | NBR |
| Flow Rate | n/a |
| Weight | 0.06 kg |
| For Fluid Type | Compressed Air |
| Product Series | Mini Series |
| Product Type | Ball Valves |
| Quantity per Box | 5 |
| Connection 1 Thread Size (metric) | na |
| Connection 1 Thread Style | na |
| Connection 2 Tube O.D. (mm) | 10 |
| Shape | Inline |
| Connection 2 Tube O.D. (inch) | na |
| Gripping Ring Material | Stainless Steel |
| Stem Material | Brass |
| Stem Seal Material | NBR |
| Ball Seal Material | NBR |
| Seat Material | Graphite-impregnated Polyamide |
| Application | Semiconductors, Vacuum, Textile, Packaging, Pneumatics |
| Configuration | 2/2 |
| Operating Pressure | Vacuum to 10 bar |
| Tube Outside Diameter | 10 mm |
| Orifice Size | 10 mm |
| Mounting Type | Inline |
| Actuation Type | Manual |
| Maximum Flow Rate | n/a |
| Handle Type | Blue Short Lever (Polymer) |
| Ball Material | Nickel-Plated Brass |
| Specifications Met | REACH, ROHS |
| O-Ring Material | NBR |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.236 |
Documents
Catalogues Literature
Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026) – catalogue page for this product (p.236)
Parker Legris Rectus General Catalogue (Europe) – full catalogue
Compliance · Certifications · Safety
Instrumentation Products Division - ISO Certification 9001
Certificate of conformity - REACH_Statement
Certificate of conformity - RoHS LPCE
Certificate of conformity - Mineral Conflict Statement_connectic
Certificate of conformity - 2014 68 EU_connectic
