Parker Hannifin Genuine

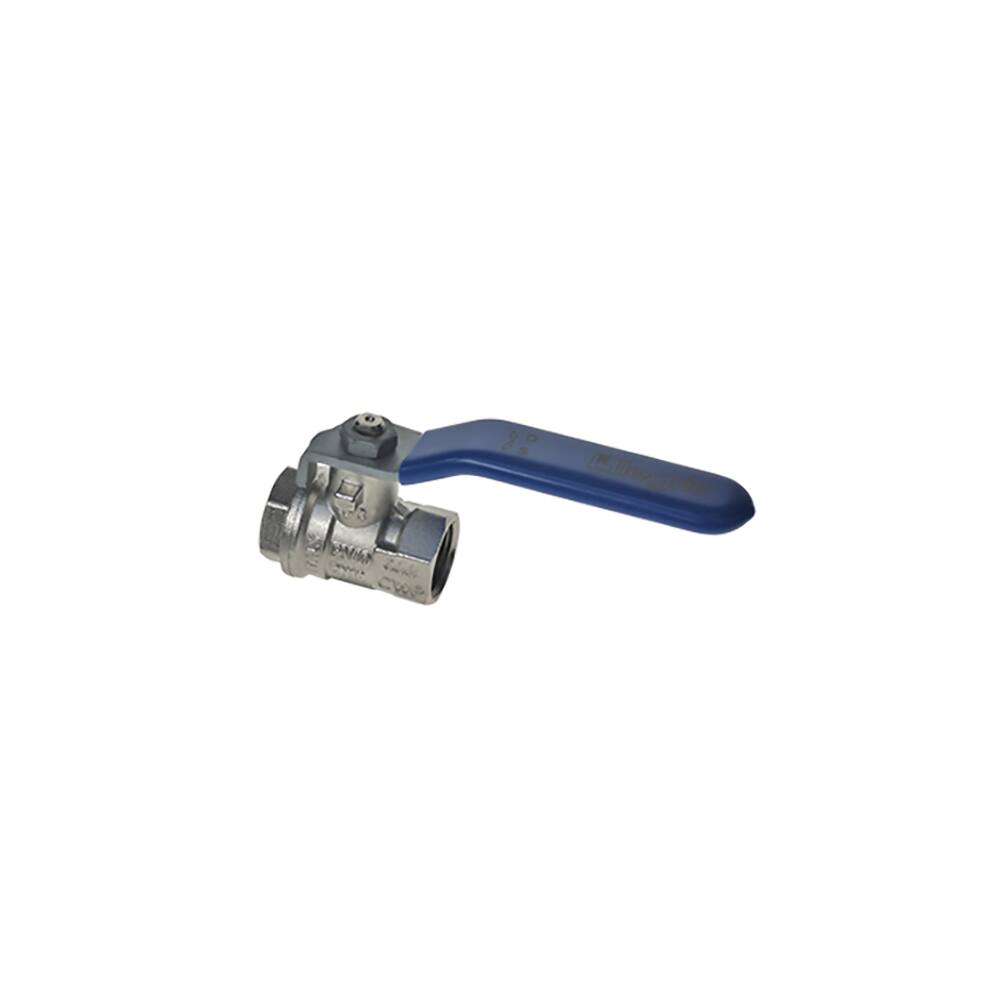

Parker Legris 2/2 Standard Series In-Line Ball Valve 3"Bspp Female
R9304,05Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 35 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
30 bar, 3 MPa
Body Material
Nickel-Plated Brass
Temperature Range
-20°C to +170°C
Overview
Parker Legris 2/2 Standard Series In-Line Ball Valve 3"Bspp Female
Specifications
| Function | 2-Way |
|---|---|
| Connection Size | G3 |
| Connection Type | BSPP |
| Maximum Operating Pressure | 30 bar, 3 MPa |
| Temperature Range | -20°C to +170°C |
| Body Material | Nickel-Plated Brass |
| Seal Material | PTFE |
| Flow Rate | n/a |
| Weight | 5.84 kg |
| For Fluid Type | Gases, Oil, All Fluids Compatible with the Component Materials, Water Vapour, Water |
| Product Series | Standard Series |
| Product Type | Ball Valves |
| Region of Origin | Italy |
| Quantity per Box | 1 |
| Handle | Lever, treated steel |
| O-Ring Material | PTFE |
| Stem Seal Material | FPM, double O'ring |
| Connection 1 Thread Size (metric) | G3 |
| Stem Material | Nickel Plated Brass |
| Ball Seal Material | PTFE |
| Diameter Nominal (DN) | 80 |
| Shape | Inline |
| Operating Pressure | 0 to 3 MPa, 0 to 40 bar |
| Application | Safety, Textile, Agricultural Machinery, Air Conditioning, Fluid Control, Heating, Pneumatics, Process Control, Plumbing |
| Handle Type | Long Lever (Treated Steel), Blue |
| Specifications Met | RoHS, REACH, DI: 2006/42/EC (Machinery Directive), DI: 97/23/EC (module PED A - diameters greater than 25 mm) |
| Orifice Size | 80 mm |
| Actuation Type | Manual |
| Ball Material | Nickel-Plated Brass |
| Mounting Type | Inline |
| Configuration | 2/2 |
| Maximum Flow Rate | n/a |
| Seat Material | PTFE |
Documents
Compliance · Certifications · Safety
Certificate of conformity - REACH_Statement
Certificate of conformity - RoHS LPCE
Certificate of conformity - Mineral Conflict Statement_connectic
Certificate of conformity - 2014 68 EU_connectic
Catalogues & Literature
