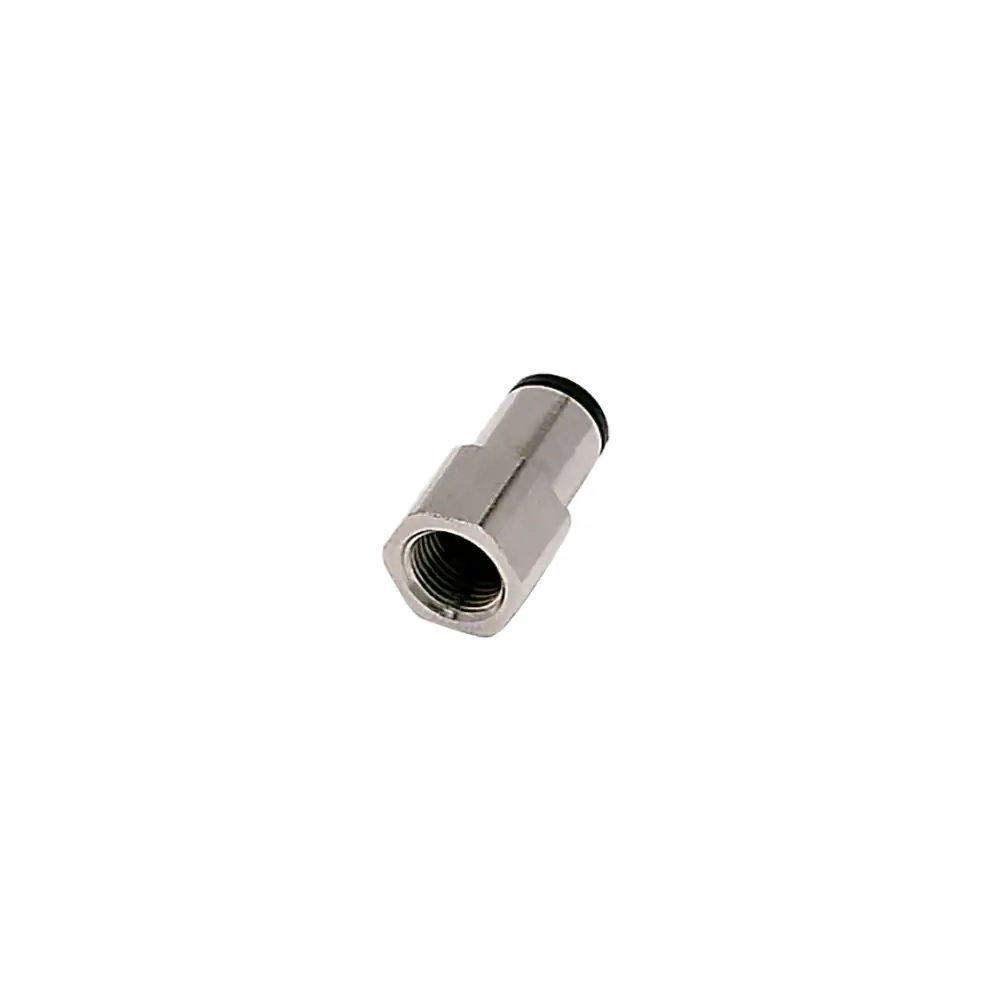

Parker Legris Cleanfit LF6800 10mm - 1/4"Bspp Female Stud Fitting
Overview
The Parker Legris Cleanfit LF6800 is a 10mm push-to-connect stud fitting with G 1/4 BSPP female thread, designed for laboratory and medical gas applications requiring the highest standards of purity.
This straight stud fitting excels in low-pressure pneumatic and fluid systems where gas cleanliness is paramount. The bio-based polymer body, finished with FDA-approved chemical nickel plating over brass, resists corrosion whilst maintaining compatibility with neutral and pure medical gases. A stainless steel gripping ring ensures reliable tube engagement and release, whilst the EPDM seal material provides consistent performance across the operating range of −10 °C to +95 °C. BAM grease certification confirms its suitability for applications where residue control is critical.
Supplied in convenient boxes of 10, this fitting is ideal for laboratory instrumentation, medical gas distribution networks, and precision pneumatic systems across healthcare, pharmaceutical, and scientific research sectors.
Specifications
| Temperature Range | -10°C to +95°C |
|---|---|
| Body Material | Brass, FDA Chemical Nickel-plated |
| Seal Material | EPDM |
| Weight | 0.027 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Breathing, Neutral & Pure Medical Gases |
| Product Type | Stud Fittings |
| Quantity per Box | 10 |
| Connection 1 Thread Size | G 1/4 |
| Gripping Ring | Stainless Steel |
| Connection 1 Type | BSPP |
| Connection 2 Tube Outside Diameter | 10 mm (O.D.) |
| Specifications Met | RoHS 2011/65/EC, VDI 2083-8 (in progress), RoHS DI: 2002/95/EC, REACH DI: 1907/2006, ISO 15001 (< 30 Bar), EN 12021 (< 0,1 Mg/m3), CGA G4.1, BAM (grease certification residue) |
| Application | Pharmaceutical Process, Clean Rooms, Respiratory, O2 Circuits, Bio-Fluid Management, Laboratory |
| Catalogue reference | Parker Legris Rectus Distribution Catalogue (Europe), p.77 |
