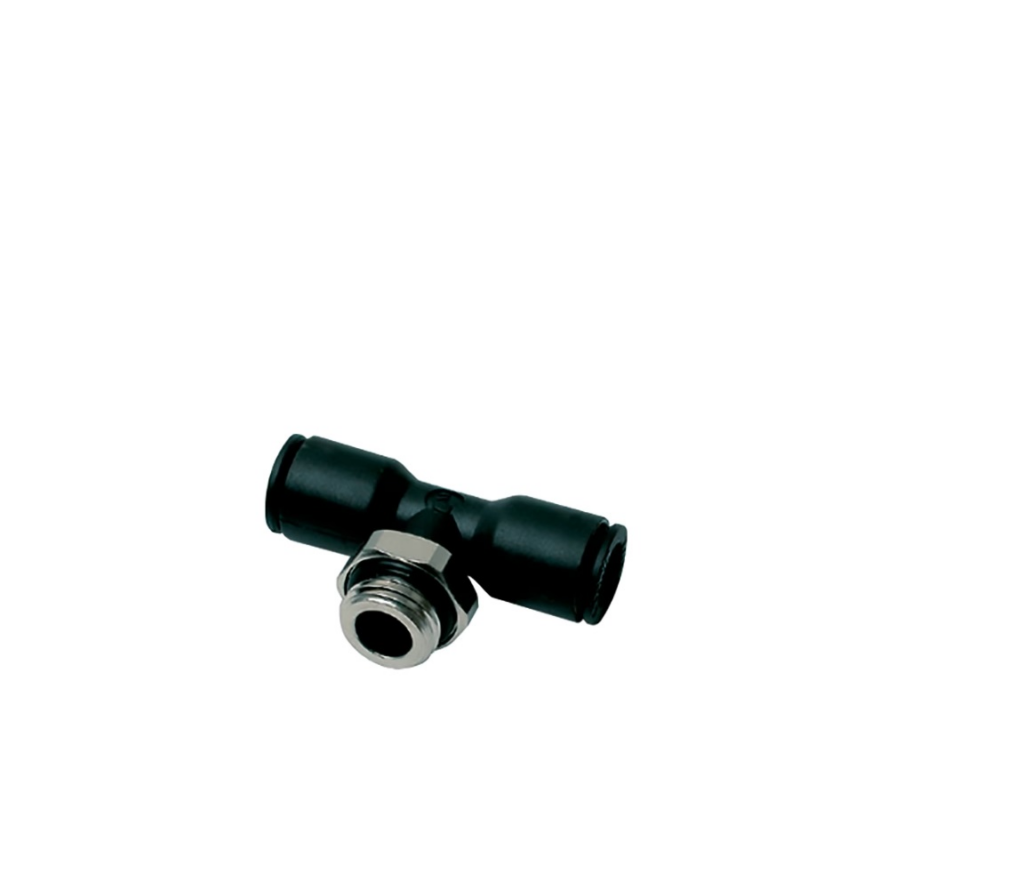

Parker Legris LF3000 10mm - 1/2"Bspp Male Stud Branch Tee
Parker Legris LF3000 branch tee, 10 mm tube to G 1/2, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
Parker Legris LF3000 10mm - 1/2"Bspp Male Stud Branch Tee (part number 31981021) is a Parker Legris LF3000 push-in fitting for low-pressure pneumatics: a technical polymer body with a stainless steel gripping ring and NBR seal, rated from vacuum (755 mm Hg) to 20 bar and -20 °C to +80 °C on compressed air. Tube is pushed straight into the collet and released by pressing the button — no tools, and the connection can be remade repeatedly.
The branch tee takes the supply in through the threaded port and splits it to two tube runs, or collects two runs into one port. Connections: 10 mm tube, G 1/2 BSPP parallel thread with an NBR sealing washer, 24 mm hex.
Typical applications: pneumatic circuits on packaging, textile and automotive machinery, robotics and vacuum handling. Use with calibrated polyamide, polyurethane or PTFE tubing; for fluids other than compressed air, consult us. Conforms to ISO 14743, PED, RoHS and REACH; silicone-free. Supplied in boxes of 10.
Genuine Parker Legris product supplied by Applied Group, authorised Parker distributor in South Africa. Dimensions and full technical data are in the attached LF3000 catalogue extract.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Branch Tee |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Type | Male, BSPP |
| Connection 2 Size | G 1/2 inch Thread |
| Hex Size | 24 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Automotive, Robotics, Textile, Packaging, Vacuum, Pneumatics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.029 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.16 |
