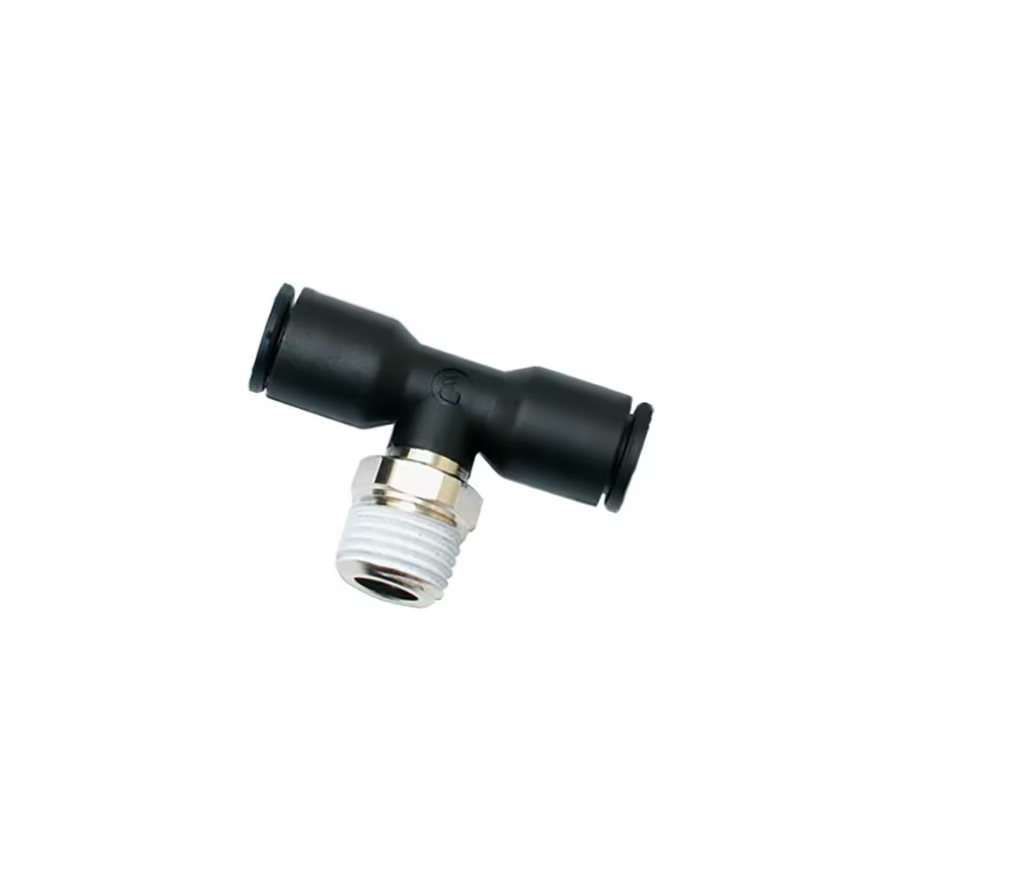

Parker Legris LF3000 10mm - 1/4"Bspt Male Stud Branch Tee
Parker Legris LF3000 branch tee, 10 mm tube to R 1/4, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 is a branch tee connector designed to split compressed air lines in automotive and industrial manufacturing applications. This push-to-connect fitting combines a 10 mm tube connection with a R 1/4 male BSPT port, making it ideal for instrument air systems and low-pressure pneumatic networks where space and installation speed matter. The body is manufactured from technical polymer with NBR seals and a stainless steel gripping ring, ensuring reliable performance across a working temperature range of −20 °C to 80 °C. The fitting accommodates vacuum pressures up to 755 mm-Hg and accepts tubing with minimal effort—no tools required for insertion or removal. Its compact hexagon metric design (15 mm hex size) facilitates straightforward installation in confined spaces. Supplied in boxes of 10 units, this connector serves automotive assembly lines, food and beverage processing equipment, and general industrial automation systems where quick, leak-free connections are essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Branch Tee |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Type | BSPT, Male |
| Connection 2 Size | R 1/4 inch Thread |
| Hex Size | 15 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Pneumatics, Packaging, Vacuum, Robotics, Textile, Automotive |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.017 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.16 |
