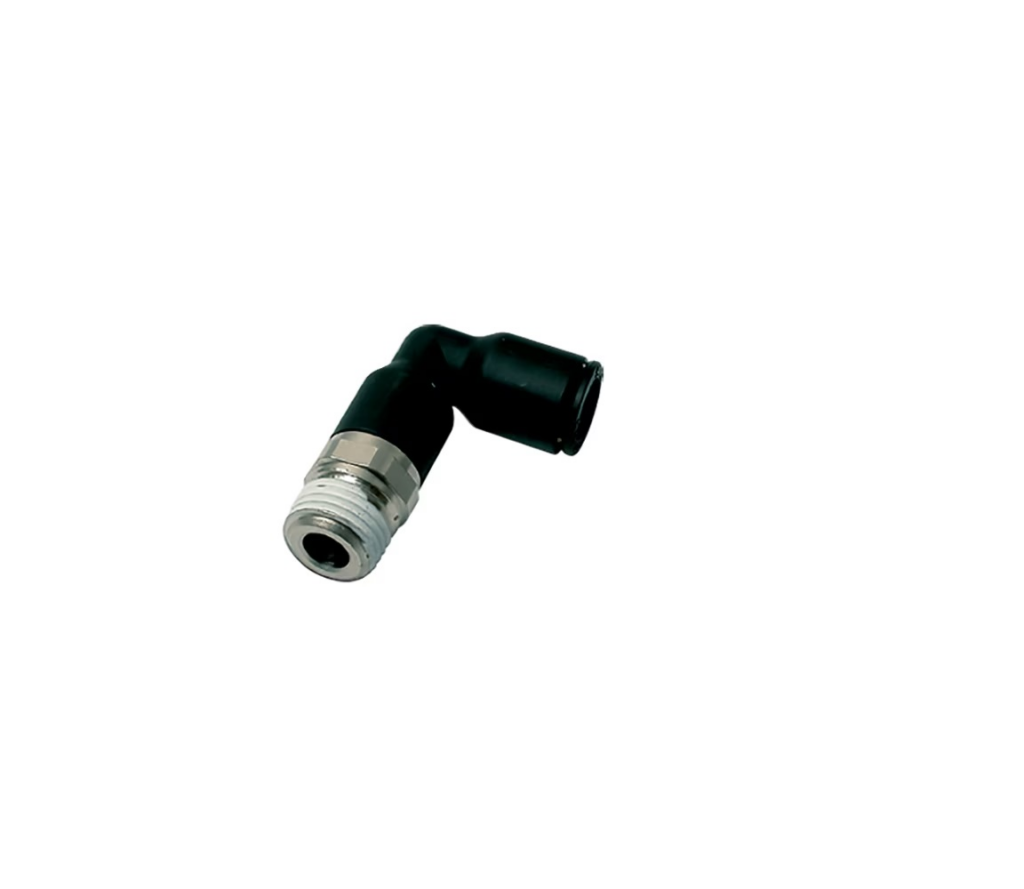

Parker Legris LF3000 14mm - 3/8"Bspt Male Stud Extended Elbow
Parker Legris LF3000 elbow 90°, 14 mm tube to R 3/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 14mm to 3/8" BSPT male stud extended elbow is a push-to-connect fitting designed for compressed air applications in automotive and transportation systems.
This 90° elbow connector provides reliable, leak-free performance across a wide operating range from −20 °C to 80 °C, making it suitable for both indoor and outdoor industrial environments. The tube-to-port configuration allows 14mm outer diameter tubing to connect securely to a 3/8" BSPT male thread, with the stainless steel gripping ring and NBR seal ensuring dependable holding strength even under vacuum conditions down to 755 mm-Hg. Manufactured from technical polymer with a metric hexagon nut (21mm hex size), this fitting eliminates the need for tools during installation whilst remaining easy to service.
Ideal for process air, instrument air, and automotive pneumatic control systems, the LF3000 series serves industries including manufacturing automation, vehicle assembly lines, and mobile equipment.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 14 mm Tube O.D. |
| Connection 2 Type | Male, BSPT |
| Connection 2 Size | R 3/8 inch Thread |
| Hex Size | 21 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Packaging, Pneumatics, Vacuum, Robotics, Textile, Automotive |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.064 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.15 |
