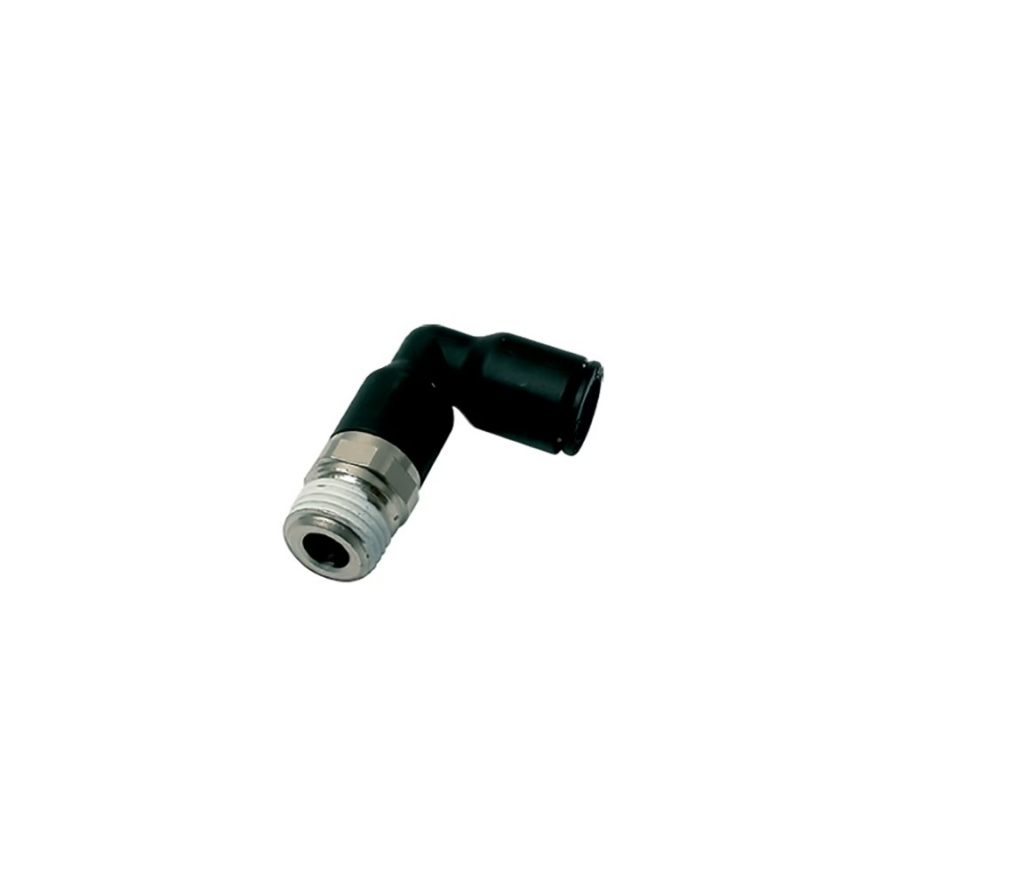

Parker Legris LF3000 10mm - 1/4"Bspt Male Stud Extended Elbow
Overview
The Parker Legris LF3000 10mm – 1/4" BSPT Male Stud Extended Elbow is a 90° push-to-connect fitting designed for low-pressure pneumatic and fluid applications where space and ease of installation are priorities.
This extended elbow fitting simplifies assembly in confined areas by allowing tube-to-port connections without requiring separate adapters. The technical polymer body combines lightweight durability with excellent chemical resistance, whilst the stainless steel gripping ring ensures secure, leak-free connections. Operating reliably across a -20 °C to +80 °C temperature range, the fitting accepts 10mm outer diameter tubing and connects to 1/4" BSPT male ports, accommodating vacuum pressures down to 755 mm-Hg. The 15mm hexagon metric body facilitates straightforward installation and maintenance in the field.
Supplied in boxes of ten units with NBR seals, this fitting serves textile machinery, power generation facilities, and general pneumatic systems requiring dependable low-pressure fluid handling.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | 15 |
| Weight | 0.031 kg |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Size | R 1/4 inch Thread |
| Connection 2 Type | BSPT, Male |
| Shape | Elbow 90° |
| Gripping Ring Material | Stainless Steel |
| Application | Vacuum, Automotive, Packaging, Pneumatics, Robotics, Textile |
| Hex Type | Hexagon Metric |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
