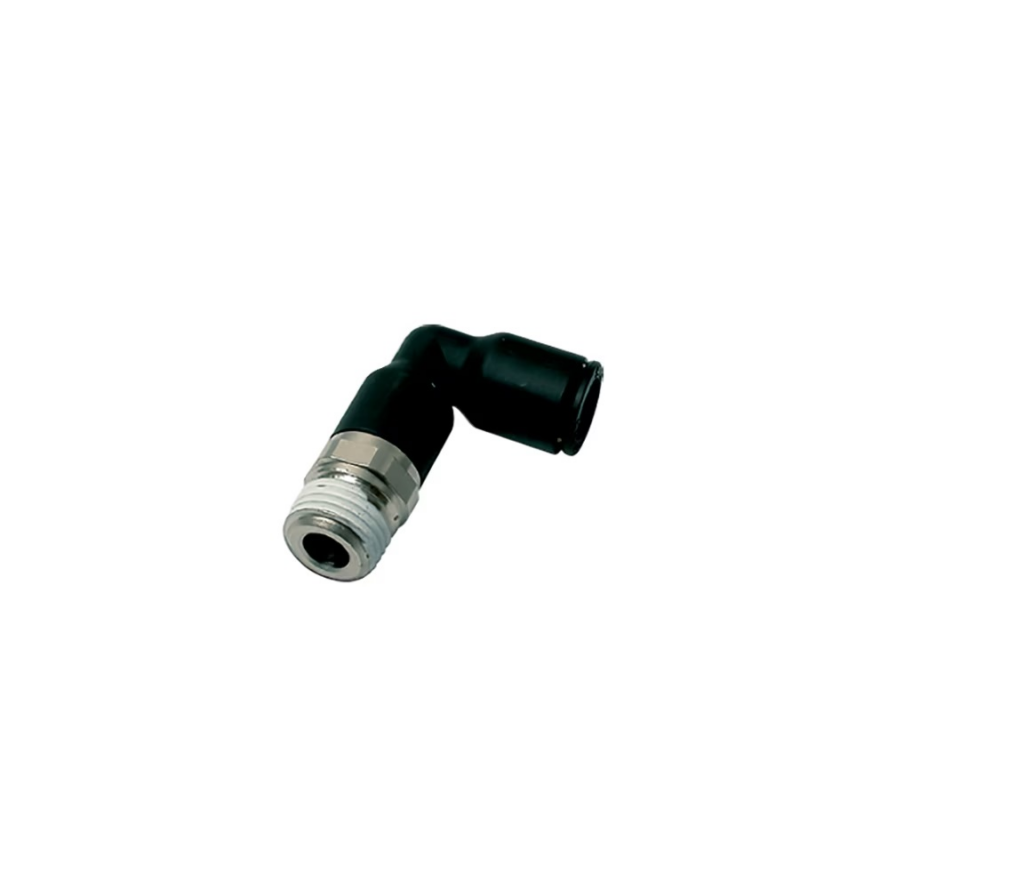

Parker Legris LF3000 12mm - 3/8"Bspt Male Stud Extended Elbow
Parker Legris LF3000 elbow 90°, 12 mm tube to R 3/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 12mm – 3/8" BSPT Male Stud Extended Elbow is a push-to-connect pneumatic fitting designed for low-pressure compressed air and vacuum applications.
This 90° elbow fitting connects 12mm tubing to a 3/8" BSPT male port, making it ideal for routing pneumatic lines in confined spaces or around equipment obstacles. The technical polymer body with stainless steel gripping ring delivers reliable, leak-free connections without requiring tools, whilst the extended elbow configuration allows easy access for tube insertion and removal. Rated for vacuum down to 755 mm-Hg and operating temperatures from −20 °C to 80 °C, this fitting maintains performance across typical industrial environments.
The 19mm hexagon metric fitting body enables secure mounting or wrench engagement when needed. With 10 units per box, this compact stud fitting is suitable for pneumatic control circuits, process instrumentation, and modular automation systems across manufacturing, power generation, and industrial process applications.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Type | Male, BSPT |
| Connection 2 Size | R 3/8 inch Thread |
| Hex Size | 19 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Textile, Packaging, Pneumatics, Robotics, Automotive, Vacuum |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.047 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.15 |
