Parker Hannifin Genuine

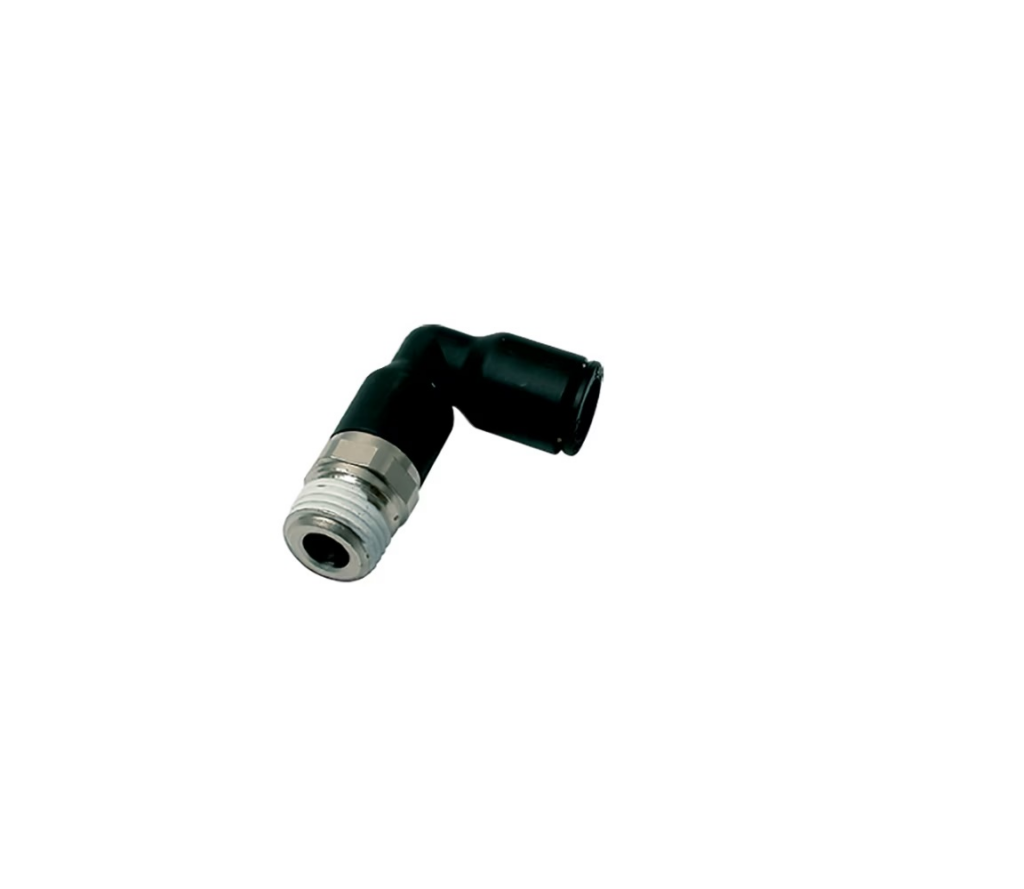

Parker Legris LF3000 4mm - 1/8"Bspt Male Stud Extended Elbow
R82,88Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Connection 2 Type
Male, BSPT
Connection 1 Type
Tube
Hex Size
10
Overview
Parker Legris LF3000 4mm - 1/8"Bspt Male Stud Extended Elbow
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | 10 |
| Weight | 0.009 kg |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Size | R 1/8 inch Thread |
| Connection 2 Type | Male, BSPT |
| Shape | Elbow 90° |
| Vacuum Pressure Rating | 755 mm-Hg |
| Application | Vacuum, Robotics, Automotive, Packaging, Pneumatics, Textile |
| Hex Type | Hexagon Metric |
| Gripping Ring Material | Stainless Steel |
| Connection 1 Type | Tube |
