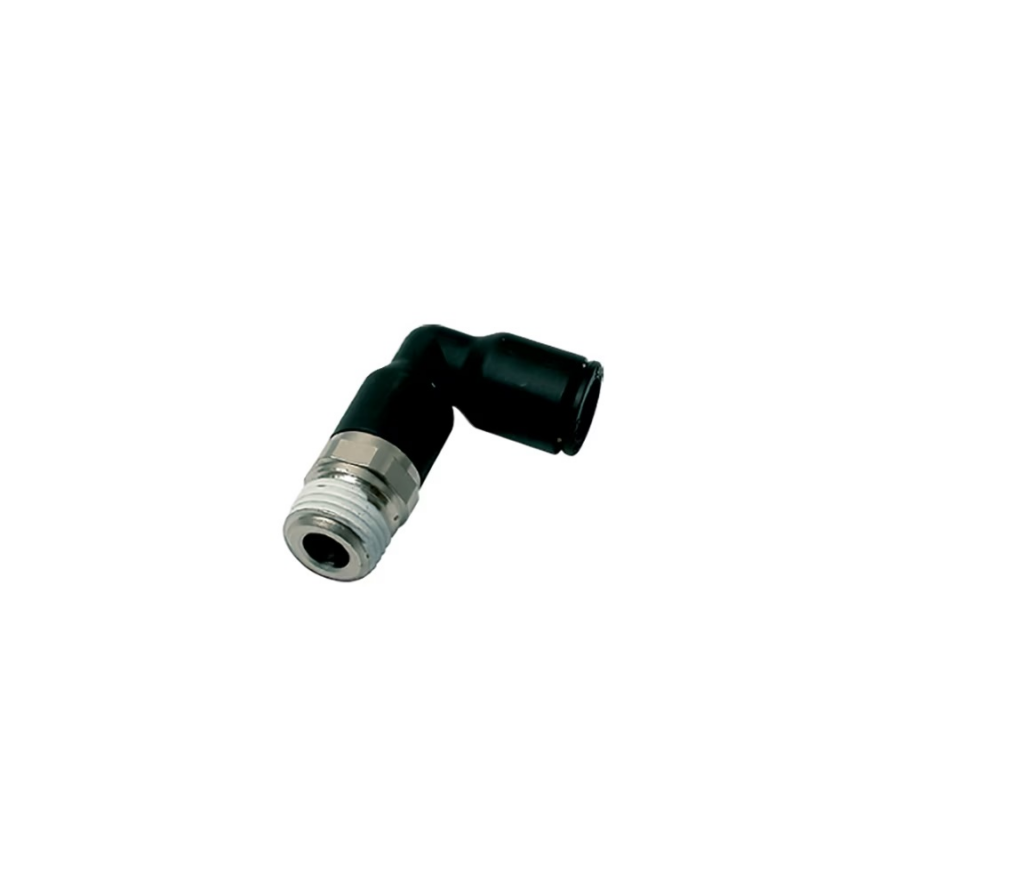

Parker Legris LF3000 10mm - 1/2"Bspt Male Stud Extended Elbow
Parker Legris LF3000 elbow 90°, 10 mm tube to R 1/2, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 10mm to 1/2" BSPT male stud extended elbow is a push-to-connect pneumatic fitting designed for compressed air applications in packaging machinery and off-road equipment.
This 90° elbow fitting connects 10mm tubing to a 1/2" BSPT port, enabling efficient directional changes in low-pressure air systems whilst maintaining reliable seal integrity. The technical polymer body with stainless steel gripping ring provides corrosion resistance and durability, whilst the NBR seal material ensures consistent performance across the operating temperature range of −20 °C to +80 °C. Rated to 755 mm-Hg vacuum pressure, the fitting accommodates both positive and negative pressure applications common in pneumatic networks.
With its 21mm hex size for easy installation and the characteristic quick-disconnect functionality of the LF3000 series, this stud fitting simplifies system assembly and maintenance. Supplied in boxes of ten, it serves industrial automation, food and beverage processing, and general pneumatic instrumentation across Europe.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Type | Male, BSPT |
| Connection 2 Size | R 1/2 inch Thread |
| Hex Size | 21 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Robotics, Automotive, Textile, Pneumatics, Vacuum, Packaging |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.058 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.15 |
