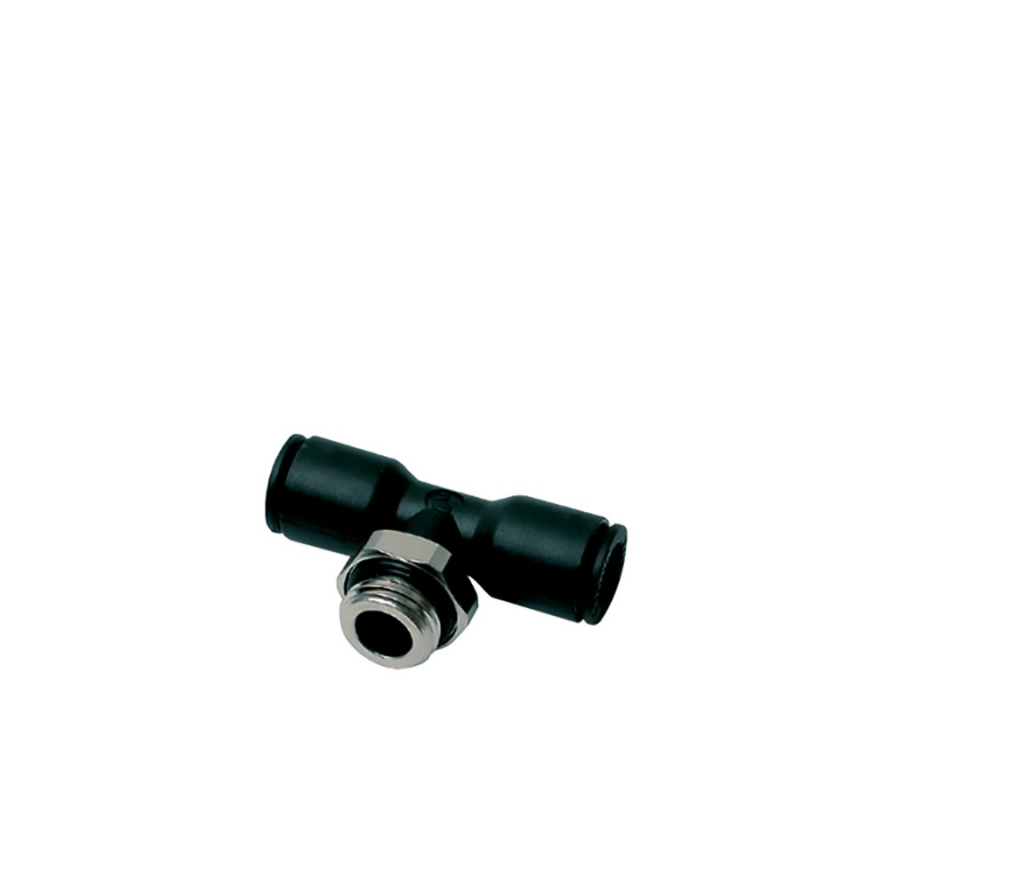

Parker Legris LF3000 16mm - 1/2"Bspp Male Stud Branch Tee
Parker Legris LF3000 branch tee, 16 mm tube to G 1/2, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 16mm to 1/2" BSPP male stud branch tee is a push-to-connect fitting engineered for low-pressure pneumatic and fluid distribution in robotics and semiconductor applications.
This branch tee configuration allows efficient multi-directional flow splitting within compact pneumatic circuits. The technical polymer body with stainless steel gripping ring delivers reliable tube connection at 16mm outer diameter, whilst the male BSPP thread (G 1/2") integrates seamlessly into manifold and panel-mounted port systems. Rated for vacuum conditions down to 755 mm-Hg and continuous operation between -20°C and 80°C, this fitting maintains performance across temperature-sensitive manufacturing environments. The NBR seal material ensures dependable gas and fluid handling without leakage during frequent connect-disconnect cycles.
Supplied in boxes of five, these pneumatic connectors are ideal for original equipment manufacturers and service engineers in industrial automation, semiconductor processing, and precision robotics where space constraints and leak-free operation are paramount.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Branch Tee |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 16 mm Tube O.D. |
| Connection 2 Type | Male, BSPP |
| Connection 2 Size | G 1/2 inch Thread |
| Hex Size | 27 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Pneumatics, Vacuum, Textile, Packaging, Automotive, Robotics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.117 kg |
| Quantity per Box | 5 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.16 |
